XY-P15W 15W Stereo Bluetooth Power Amplifier Module

Marka/Menşei: WAVGAT
Stok Kodu : 18721

116.89 TL + KDV
140.27 TL KDV Dahil
Out of stock Alert when in stock
Share:
  • Features
  • Payment Options
  • Comments (0)
  • Images
  • 15W Stereo Bluetooth Power Amplifier Module


    XY-P15W,It is a high power stereo Bluetooth audio module. It has dual channel audio signal output. The built-in amplifier module can therefore be connected directly to the loudspeaker. Ideal for DIY wireless Bluetooth speakers and transponders.

    Features:


    • Wide operating voltage range

    • Applicable multi-type speakers

    • Knob adjustment

    • Reverse link protection support

    • Short circuit protection support

    • Overheat protection

    Note:


    • The power amplifier board should be as far away from the WIFI signal (router) as possible to avoid signal interference.

    • Recommended power supply voltage is DC 8 ~ 24V range. The module will be damaged at a voltage higher than 26V.

    • If you are going to connect 4R speakers, you can give 12V input voltage.

    • If you are going to connect 8R speakers, you can give 24V input voltage.

    • It is recommended to use a 2A or higher power supply.

    • If you want to get 2x20W output power, you need to add extra heat sink.

    • Please do not use very long wires to avoid signal interference.

    • It is recommended to use a speaker above 30W to avoid speaker damage.

    • Read the user manual and description before use.

    15W Stereo Bluetooth Power Amplifier Module Specifications


    ManufacturerWAVGAT
    Product CategoryBluetooth Audio and Amplifier Modules
    SherryXY-P15W
    Operating voltageDC 8V - 24V
    Communication Distance15 meters (Max)
    ChannelDouble channel
    Output Power (at 1 khz)

    1) Output power 16W * 2 at 12V 4R

    2) Output power 10W * 2 at 12V 8R

    3) Output power 15W * 2 at 16V 4R

    4) Output power 20W * 2 at 20V 4R

    5) Output power 30W * 2 at 24V 4R (need to add extra heat sink!)

    Speaker (30W ~ 150V)

    1) 4R 8V ~ 12V

    2) 8R 8V ~ 24V

    3) 16R at 8V ~ 24V

    Operating temperature-40 ° C ~ 85 ° C
    Working Humidity0% ~ 95% RH

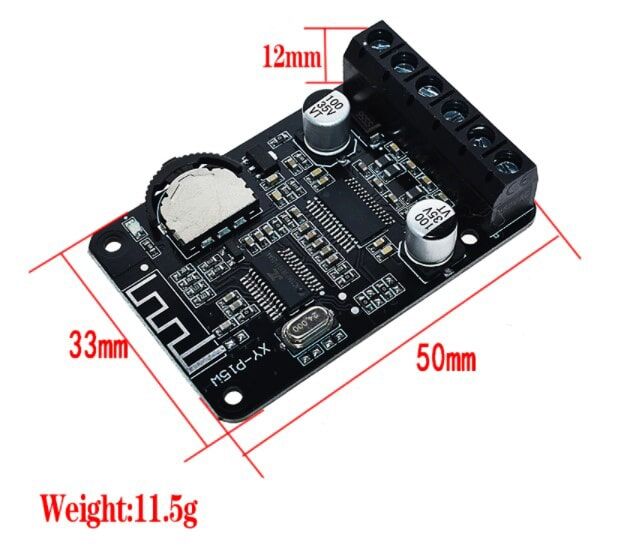

    Size50 x 35 x 14mm

    Usage Steps

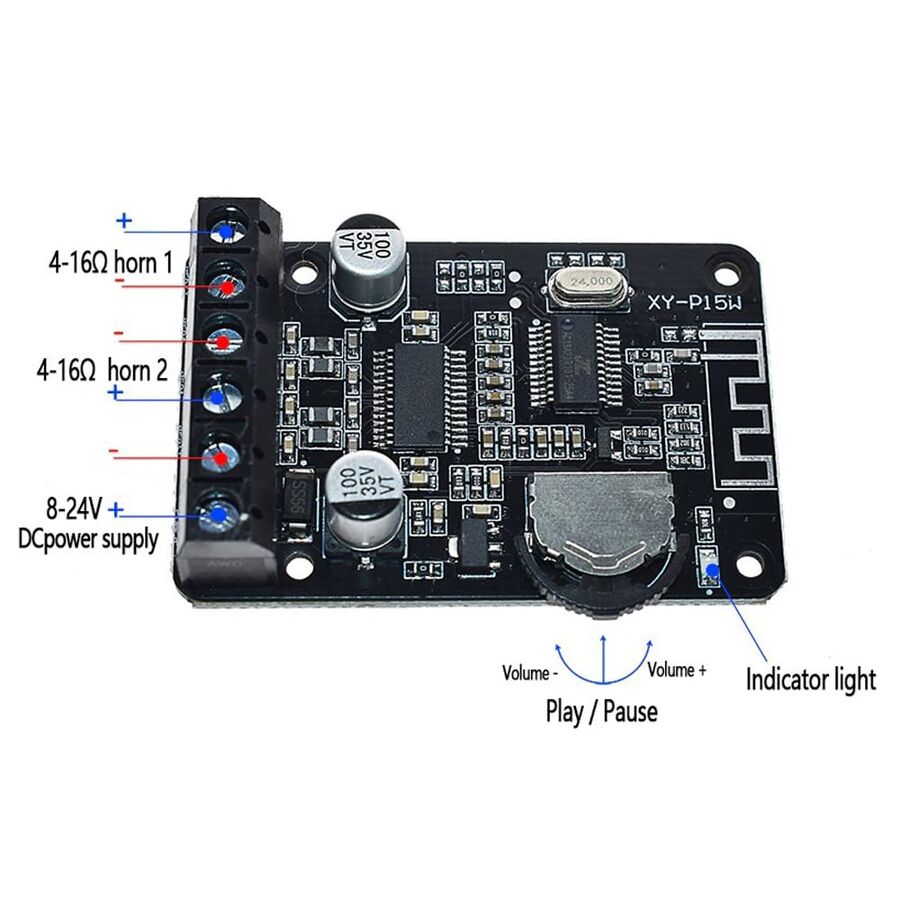

    one)Select the right speaker and connect as shown on the wiring diagram.
    2nd)Connect to correct power source from input terminal. The LED indicator flashes and means the module has entered pairing mode. Then comes the quick sound, and that means the module is waiting for pairing.
    3)Turn on the Bluetooth on the phone.
    4)Select Bluetooth device 'XY-P15W' in your Bluetooth device list.
    5)The LED indicator continues and the module is successfully connected.
    6)The module will play music after selecting music on the phone. The LED indicator will continue to flash slowly.
    7)If the module is disconnected, fast sound will be heard.

    Scope of application:


    • Modified speaker

    • Amplifier equipment

    • Car Bluetooth device

    Package Included:


    • 1pc XY-P15W Stereo Bluetooth power amplifier module

    Useful Links
