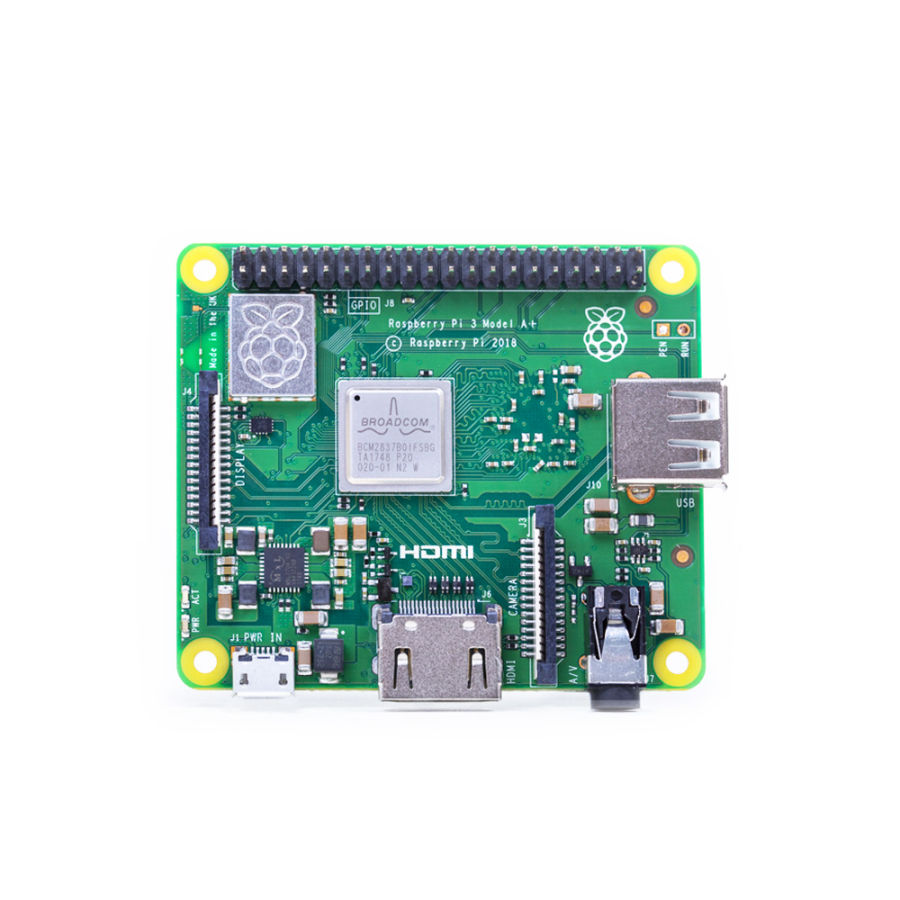

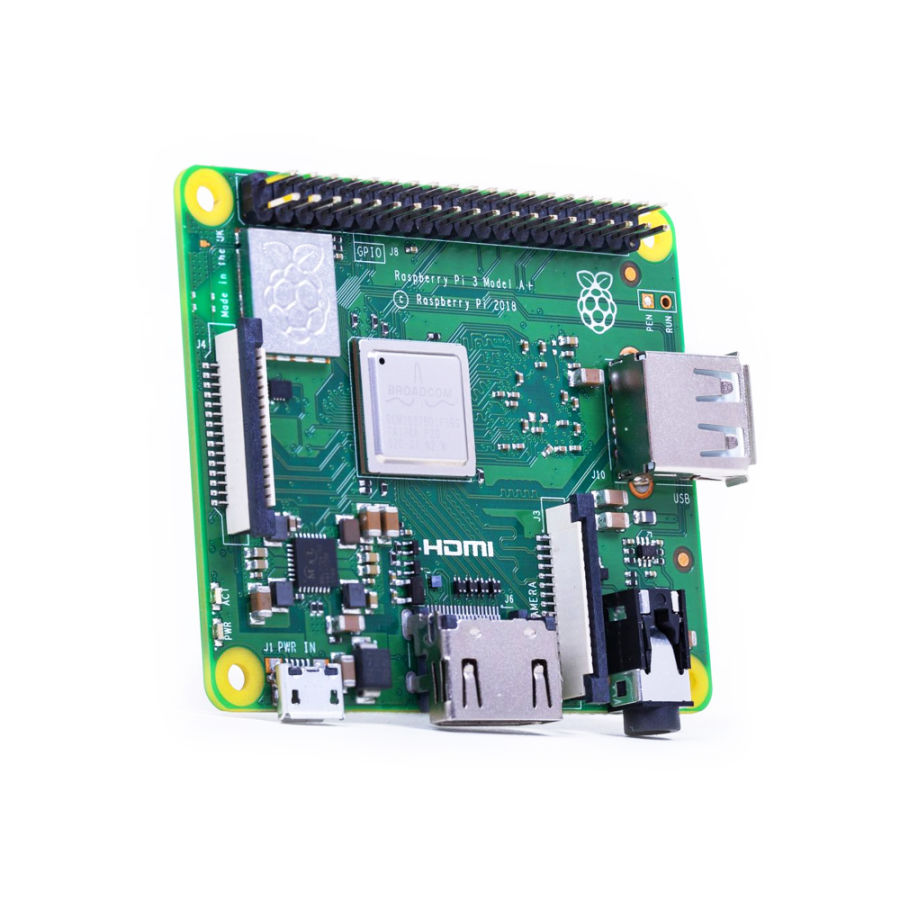

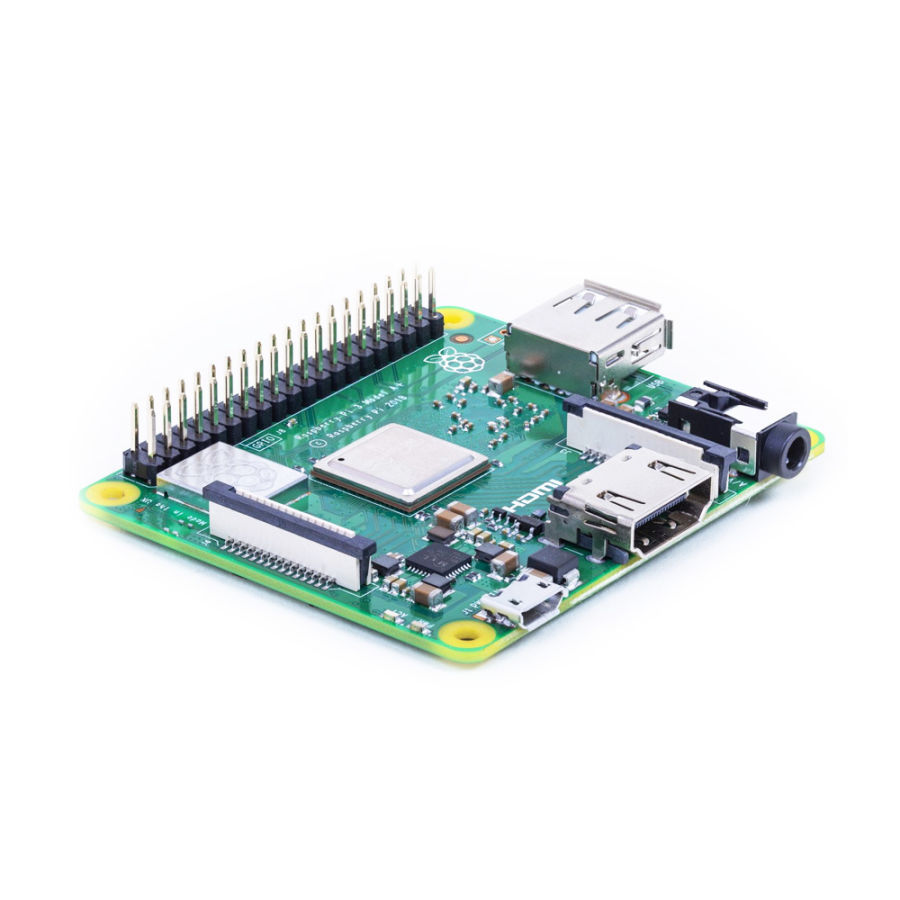

Raspberry Pi 3 Model A + Plus

Raspberry Pi 3 A +

Raspberry Pi 3 Model A + PlusIs the new, small and light version of Raspberry Pi 3. Raspberry Pi 3 A + 1.4GHz, 4-core 64-bit ARM processor. Along with dual-band 2.4GHz and 5GHz wireless LAN connection, there is also Bluetooth 4.2 / BLE on the Raspberry Pi 3 A +. There is also a USB 2.0 port on Raspberry Pi 3 A +.

The design of the Raspberry Pi 3 A + model is the same as the Raspberry Pi 1 A + to keep it compatible with Raspberry Pi accessories.

Raspberry Pi 3 A + Technical Specifications

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• 512MB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b / g / n / ac wireless LAN, Bluetooth 4.2 / BLE
• Extended 40 pin GPIO header
• Full size HDMI
• Single USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi Camera Module
• DSI display port for connecting Raspberry Pi Touch Screen
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V / 2.5A DC power input

Documents

• Raspberry Pi 3 Model A + PDFCheck the file.
