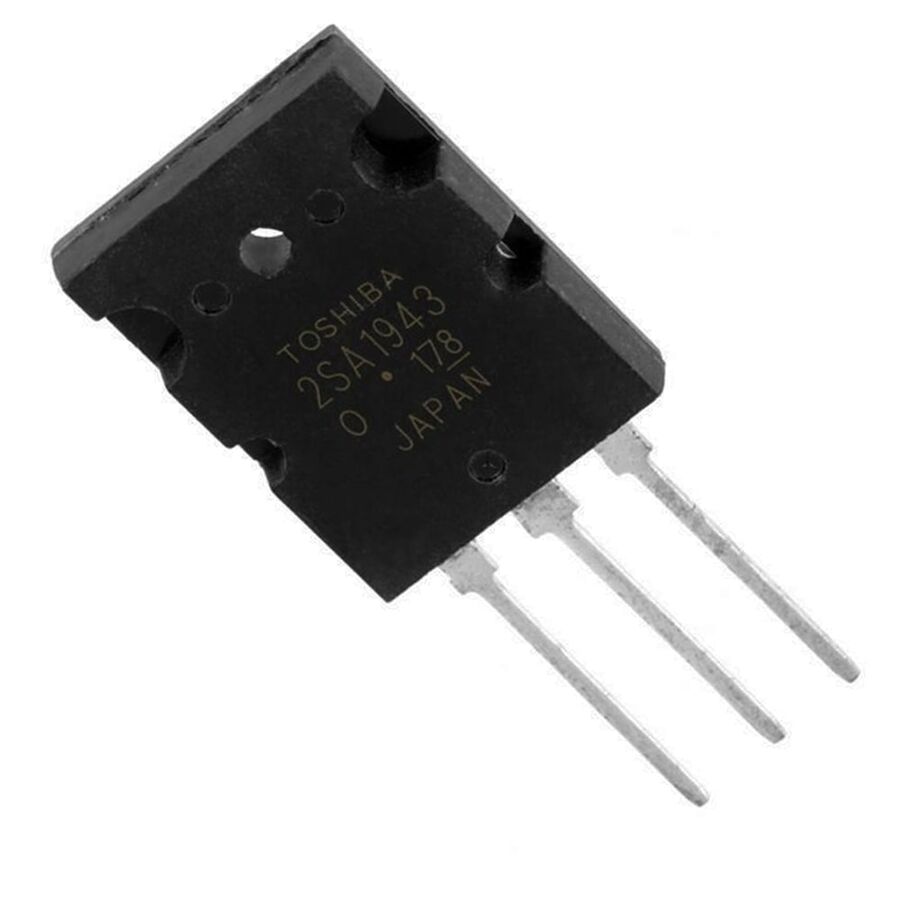

2SA1943 230V 15A PNP Power Transistor

2SA1943 PNP 230V 15A Power Transistor

2SA1943 Toshiba brand SiliconePNPa triple diffuse type high collector voltage (Vceo = -230V)power transistorStop. It is the conjugate of the 2SC5200 transistor. For example, it can be used on the output stage of a 100W high fidelity audio frequency amplifier.

2SA1943 230V 15A PNP Triple Diffused Type Power Transistor Technical Specifications

• Transistor Type: PNP
• Current Collector Current: (Ic) (Max): -15A
• Voltage - Collector Emitter Breakdown Voltage (Max): 230V
• Vce Saturation Current (Max) @ Ib, Ic: 3V @ 800mA, 8A
• Collector Breaking Current (Max.): 5µA (ICBO)
• DC Current Gain (hFE) (Min.) @ Ic, Vce: 80 @ 1A, 5V
• Power - Max. : 150W
• Frequency: 30MHz
• Working Temperature: 150 ° C (TJ)
• Mount Type: Dip

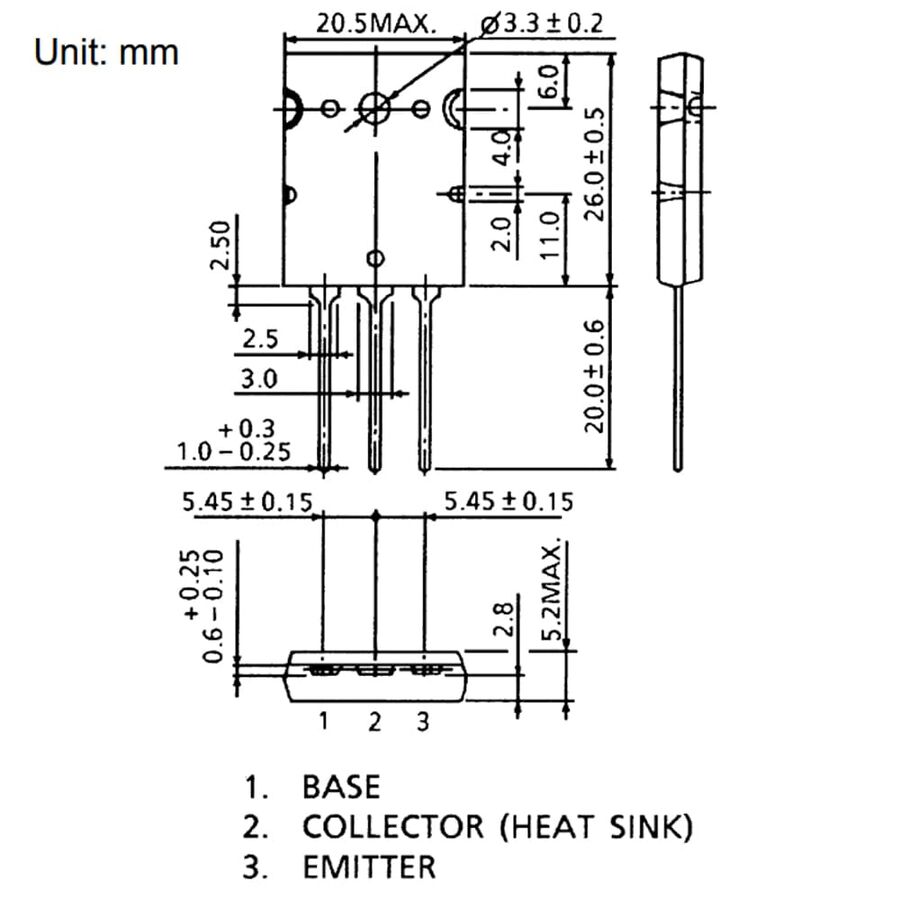

• Package / Case: TO-3PL
• Package Type: TO-3P (L)
• Model No: 2SA1943
