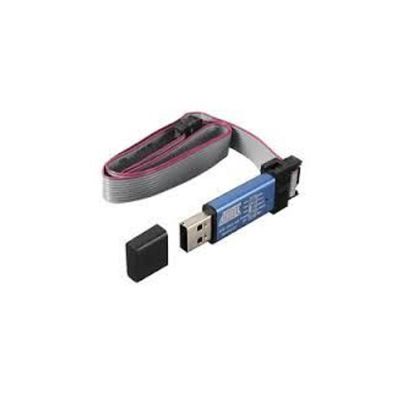

USB-AVR/51-ISP ATMEL AVR Programmer and 10 Pin Adaptor

USB-AVR/51-ISP ATMEL AVR Programmer and 10 Pin Adaptor

USB-AVR/51-ISP ATMEL AVR Programmer and 10 Pin Adaptorproduct is a USB circuit programmer manufactured for the Atmel AVR controllers. You can easily do the programming job with just one ATMega8 and a few passive components. You only need the USB Driver for programming. No special USB controller is required. The Driver links are the 7th of the datasheet file of the product located in the inventors section below. page. You can access all information about the product from the datasheet file on how to load the Driver and all information about the product.

USB-AVR/51-ISP ATMEL AVR Programmer and 10 Pin Adaptor Technical Features:

• Runs under multiple platforms. The Linux, Mac OS X, and Windows tests are done.
• Programming speed can be up to 5kb/sec.
• Slow SCK option to support small targets with crystal frequency 1.5 MHz.

The Microcontrollers Supported by the USB-AVR/51-ISP ATMEL AVR Programmer:

Mega Series:

• ATmega8 ATmega48 ATmega88 ATmega168 ATmega328
• ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16
• ATmega161 ATmega162 ATmega163 ATmega164 ATmega169
• ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329
• ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649
• ATmega6490 ATmega8515 ATmega8535

Tiny Series:

• Attiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26
• Attiny45 ATtiny85 ATtiny2313

Classic Series:

• AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414
• AT90S4433 AT90S4434 AT90S8515
• AT90S8535

CAN Series:

• AT90CAN128
• PWM Series
• AT90PWM2 AT90PWM3

Documents

• 1-) USB-AVR/51-ISP ATMEL AVR Programmer DatasheetCheck his file.
• 2-) USB-AVR/51-ISP ATMEL AVR Programmer DatasheetCheck his file.
