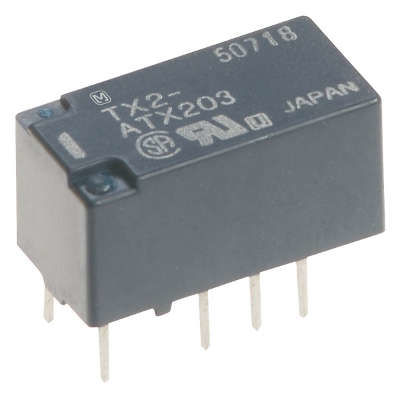

TX2-24V 24VDC 2A 2PNC Telecom Panasonic Relay

24V 2A Telecom Relay TX2-24V

RelayIt is a mechanical switching unit that can be controlled electrically. It consists of two main parts: relay coil and contactors. The relay coil, over which current flows, creates a magnetic field and attracts the contacts. Thus, relay contacts change position.

It is one of the circuit components preferred in telecom applications, gas detector circuits, RF control applications, Infrared control applications, small volume circuits (gum relay) etc.

It is used in the control of load currents between 1A-40A at operating voltages of 5V, 9V, 12V, 24V, 48V, 220V. Single and multiple contact output possibilities are available.

TX2-24V 24VDC 2A 2PNC Telecom Panasonic Relay Specifications

Manufacturer: PANASONIC COMP.

Relay Type: RELAY TELECOM

Mounting Type: THT

Contact Form: DPDT (2 Form C)

Coil Type: Non Latching

Contact Current: 2A

Coil Voltage: 24VDC

Coil Current: 5.80mA

Contact Voltage: 220VDC - Max

Coil Resistance: 4.11K

Coil Power 140mW

Working Temperature: -40 ° C ~ + 85 ° C

Number of Pin: 8PIN

Dimensions (mm) WxLxH: 15.00x7.40x8.20

Rohs ROHS
