TTM1638 Module Switch Screen AVR Arduino 8-Bit Digital LED Card

Marka/Menşei: China
Stok Kodu : 17097

21.29 TL + KDV
25.12 TL KDV Dahil
Share:
  • Features
  • Payment Options
  • Comments (0)
  • Images
  • TM1638 Module Key Screen

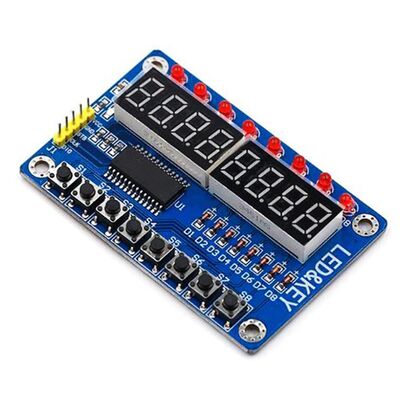

    8-digit 7-segment screen module (HCMODU0095),It uses TM6138, which allows full control of the screen using only 3 digital pins on the arduino and other microprocessors. In addition to the 7-segment screens, there are 8 3mm Led and 8 butons that can be controlled separately. It is also checked with TM6138 IC, and it can be controlled without requiring an extra digital pin. With standard 5-pin header connections, it provides an easy interface to your microcontroller.
