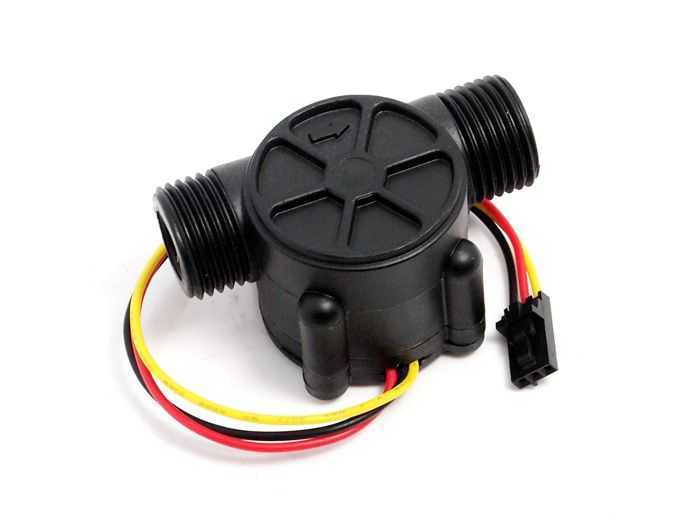

YF-S201 - Water Flow Sensor

YF-S201 - Water Flow Sensor

Water flow sensor,It is a plastic body product that contains a rotor and hall effect sensor. When water starts to flow through the sensor, the rotor starts to rotate and the hall effect sensor generates a signal according to the rotation speed of the rotor. It can be used to control water flow in areas such as water dispensers or coffee machines.

Water Flow Sensor yf-s201 Technical Specifications

• Easy to use
• High performance sealing
• High quality magnetic sensor
• Working Voltage: DC 5V-24V
• Working Current: 15 mA (DC 5V)
• Output Type: Digital
• Flow rate: 1-30L / minute
• Water Pressure: ≤1.75MPa

Documents

• YF-S201 DatasheetCheck the file.

Please Read the Note.

• Operate the product with DC voltage, not AC, and within the specified range, the power source, adapter, battery, etc. Make sure that it supplies the necessary power and / or current.
