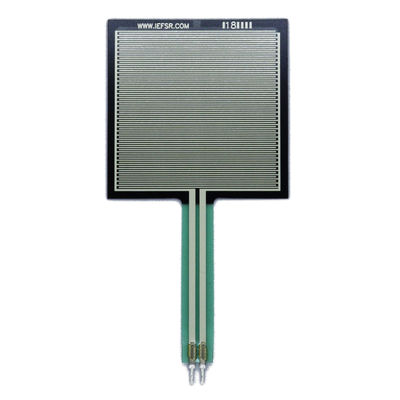

Force Sensitive Resistors (Force Sensor - FSR) are sensors that detect physical stress, compression, and weight. It is simple to use and low cost. This sensor is Interlink model 406 FSR with a 38mm frame detection zone. This sensor measures the force. It does not detect where pressure is exerted on the square.

Force Sensor - FSRs are basically a resistor that changes the resistance value (in ohms Ω) depending on its applied pressure. These sensors are very low cost and easy to use, but an average value can be taken instead of a net value. With a deviation of 10%, you can get a range of values instead of a single result. For example, if the result you want is 100, you should expect between 90-110 results. FSRs can detect weight, but will not be able to determine exactly how many pounds they weigh.

FSRs are made of plastic and the connecting tab is crimped with precision material.Force Sensitive Sensor (FSR), the best way to connect thembreadboard,crocodile jack, femaleheaderor a clamp style such as a terminal blockconnectoris to use. It is possible to solder onto nails, but you have to be very fast because if the plastic melts the sensor will break.

Force Sensitive Resistance / Force Sensor - (FSR) - Square - Interlink 406 Features

• Length: 88 mm / 3.47 inch
• Width: 43.7mm / 1.72 inch
• Thickness: 0.42mm / 0.0165 inch
• Weight: 1.12g / 0.04oz

Documents

• Pressure - Force Sensitive Sensor (FSR) User ManualCheck the file.
• FSR400 Series User ManualCheck the file.
