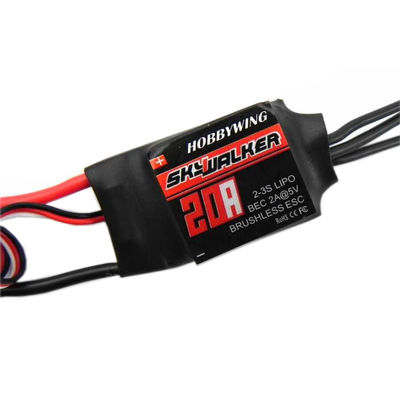

Skywalker 20A Esc Brushless Motor Speed Control Driver Circuit

Brushless Motor Driver and Speed Control Module - 20A - SKYWALKER

SKYWALKER Motor Driver CardsIt is designed for use in drone projects where precise engine control is required. The maximum current limit for the board, which allows a standard 20A current, is 25 amps.

Skywalker 20A Technical Specifications

• Normal Current Value: 20A
• Maximum Current Value (less than 10 seconds): 25A
• Driver Board Mode: Linear
• Driver Board Outputs: 5V / 2A
• Driver Card Capacity:
  • 2S lipo: 5 Servo
  • 3S lipo: 4 Servo
• Batteries that can be used:
  • Lipo: 2S-3S
  • NiMH: 5-9 Cells
• Weight: 19 g
• Dimensions: 42x25x8 mm
