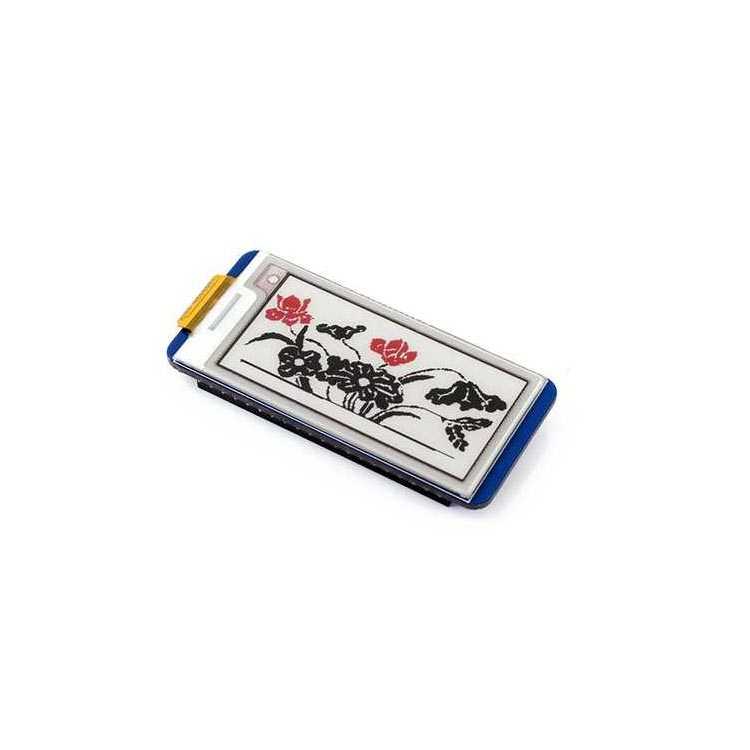

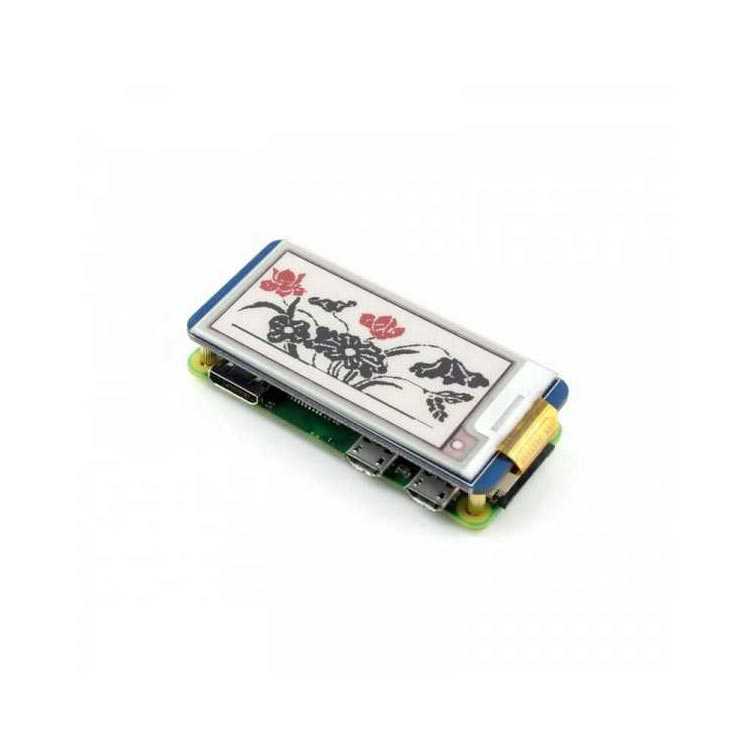

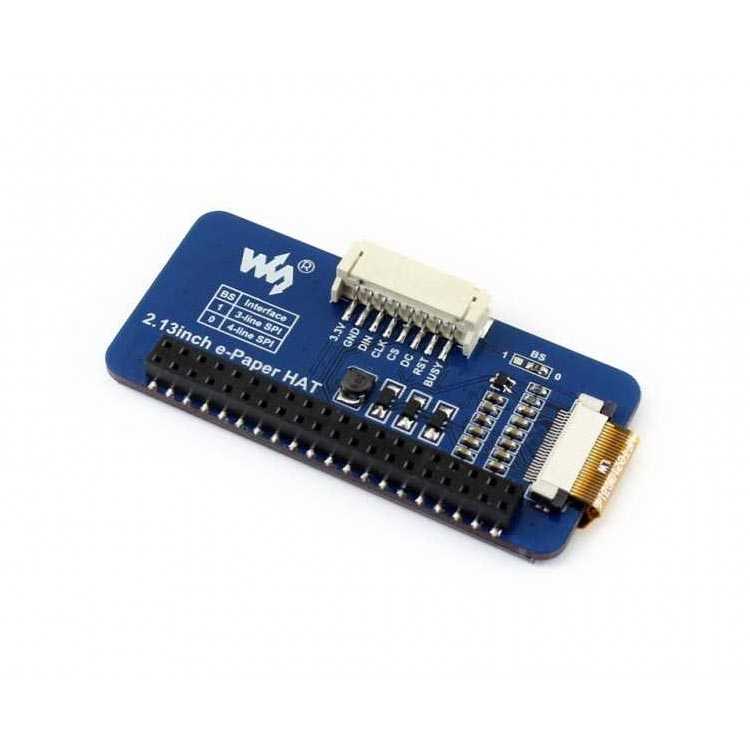

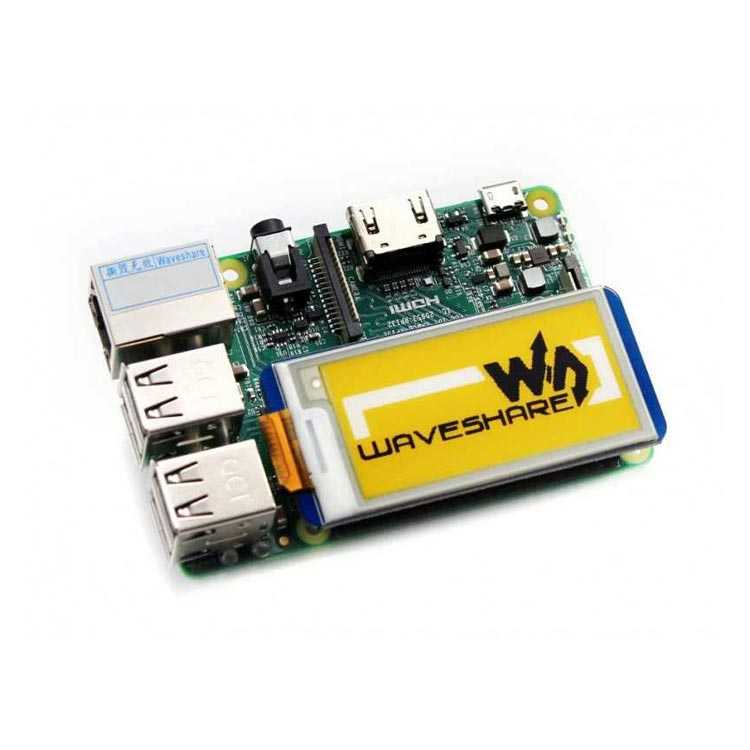

Raspberry Pi 2.13 inch Tricolor Ink Display with 212x104 Resolution (B)

Raspberry Pi 2.13 inch Tricolor Ink Display with 212x104 Resolution

ItRaspberry Pi compatible ink screenComes with integrated drivers with 212x104 resolution. It is easily controlled with the SPI interface. It is possible to create various images (such as Beşiktaş emblem) with Red, White and Black colors. It is used in price tags and industrial devices due to its low energy consumption, wide viewing angle and high contrast features.

Raspberry Pi 212x104 - 2.13 inch Tricolor Ink Display Features

• Working voltage: 3.3v
• Interface: 3pin-SPI, 4pin-SPI
• Module size: 65mm × 30.2mm
• Display size: 23.71mm × 48.55mm
• Dot pitch: 0.229 × 0.228mm
• Resolution: 250 × 122
• Display color: black, red, white
• Gray level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW
• Standby power:<0,017mW
• Görüş açısı:>170 °

Documents

• 2.13 inch Ink ScreenCheck the file.
