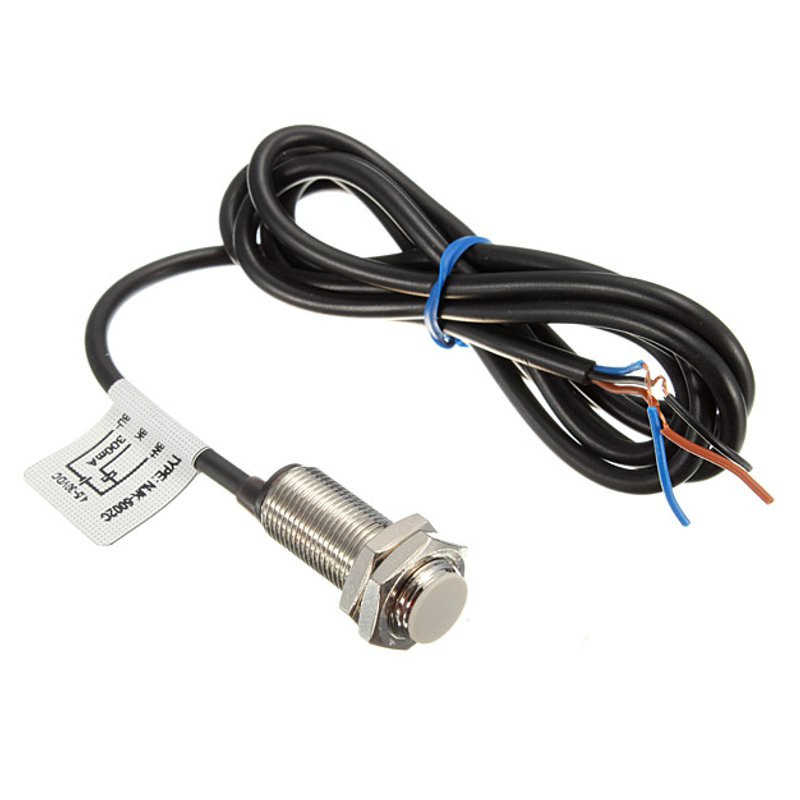

NJK-5002C NPN Proximity Hall Effect Sensor

NJK-5002C Proximity Sensor

One of the sensors that are frequently used in industrial control and automation applications is proximity sensor. Proximity means proximity, as a word. As it can be understood from its word meaning, proximity sensor is the sensor that sees the presence or proximity of an object. Proximity sensor works by controlling the changes in the electromagnetic or electrostatic field it creates. Different types of proximity sensors are used according to the characteristics of the target object.

NJK-5002C Proximity-Proximity Sensor Technical Specifications

• Model: NJK-5002C
• Supply voltage 5-30VDC
• Sensing distance 10mm (effective sensing distance 0-10mm)
• Load current 150MA (maximum)
• Output form NPN three lines
• Output state normally open (no)
• Outdoor cables 1.2 m (standard, others according to customer needs)

• Output indicator LED (red)
• Form factor diameter: 12MM thread length: 32MM total length: 37MM

Connection style:

Black - Exit

Blue - GND

Brown - Vin

Documents

• NJK-5002C DatasheetCheck the file.
