Pcb Reference Ruler 15cm

15cm Pcb Reference Chart

Reference Chart,It allows you to see the actual size of the different types and sizes of components. With this ruler, you can more easily decide which sheath type to use when ordering or designing a PCB, and you will not encounter any surprises.

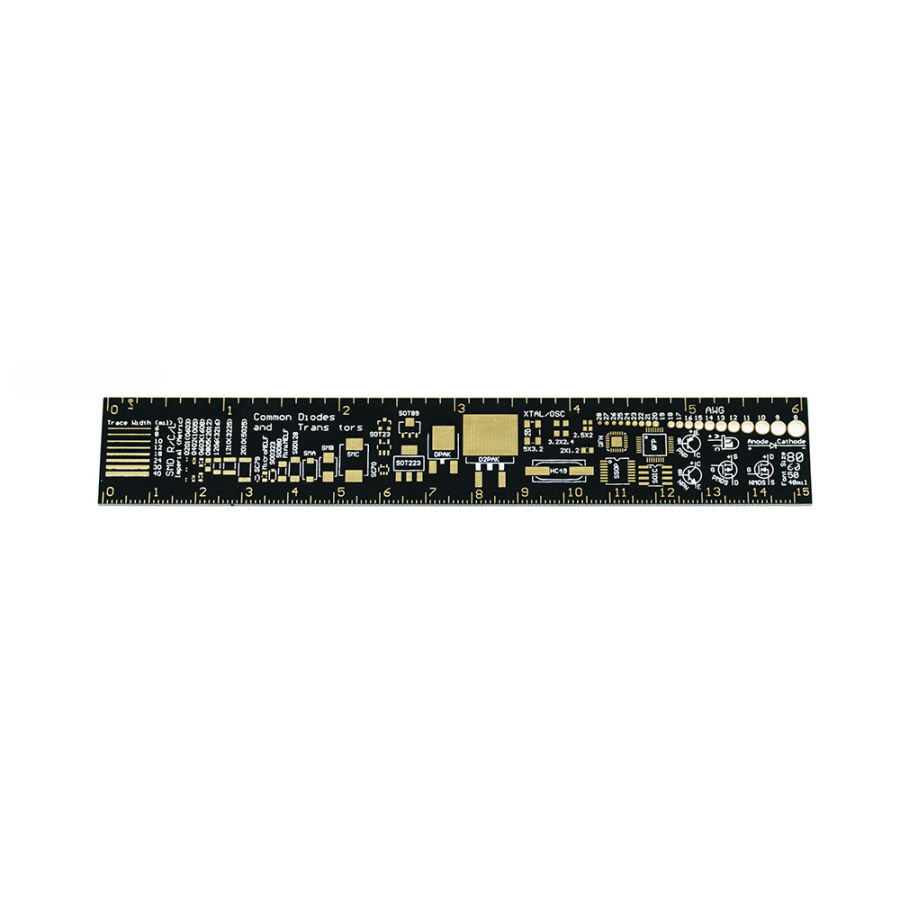

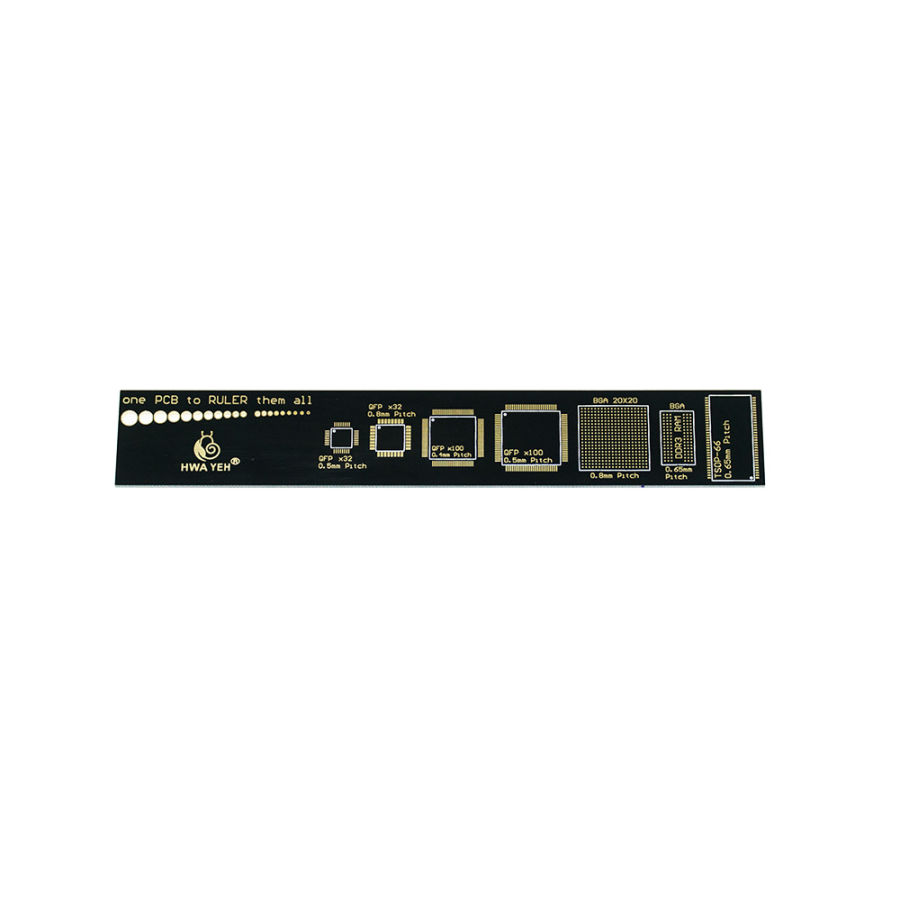

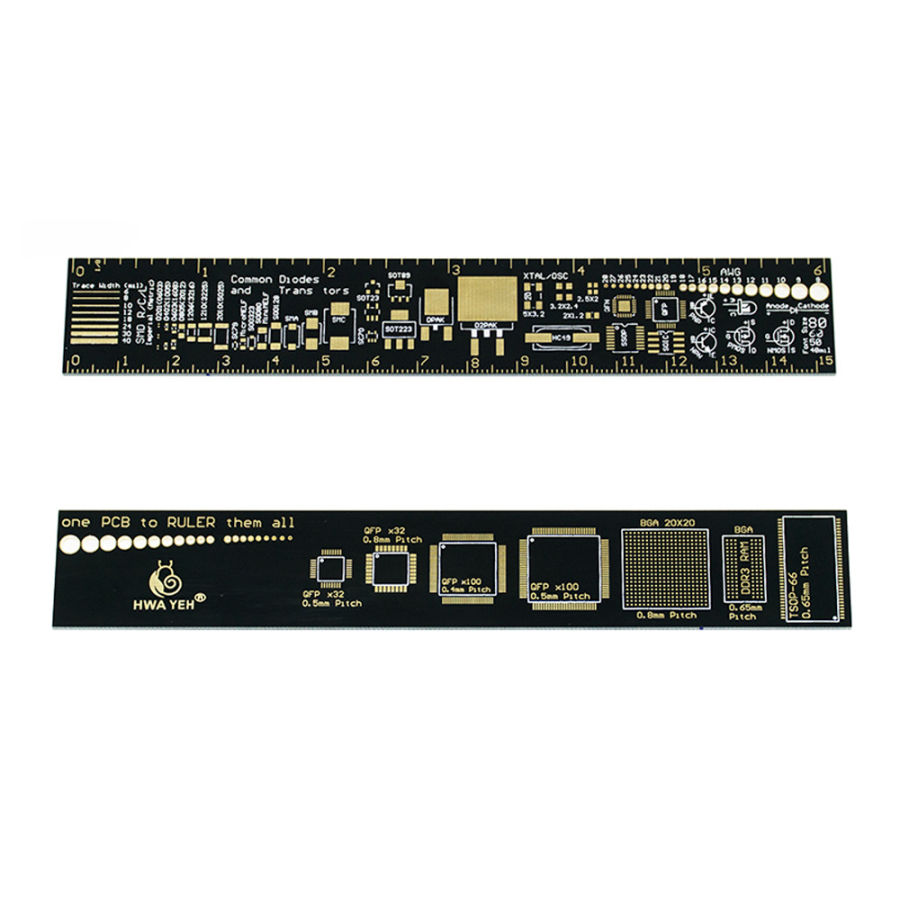

The approximately 15cm long gold plate ruler has the most common component packages you will come across. It also features a font size guide, track width diagram, and a set of AWG size drill holes so you can measure your wire thicknesses.

Pcb Reference Ruler 15cm Technical Specifications

• Dimensions: 25.6mm x 153.98mm / x 1.64mm
• Weight: 12.07g
