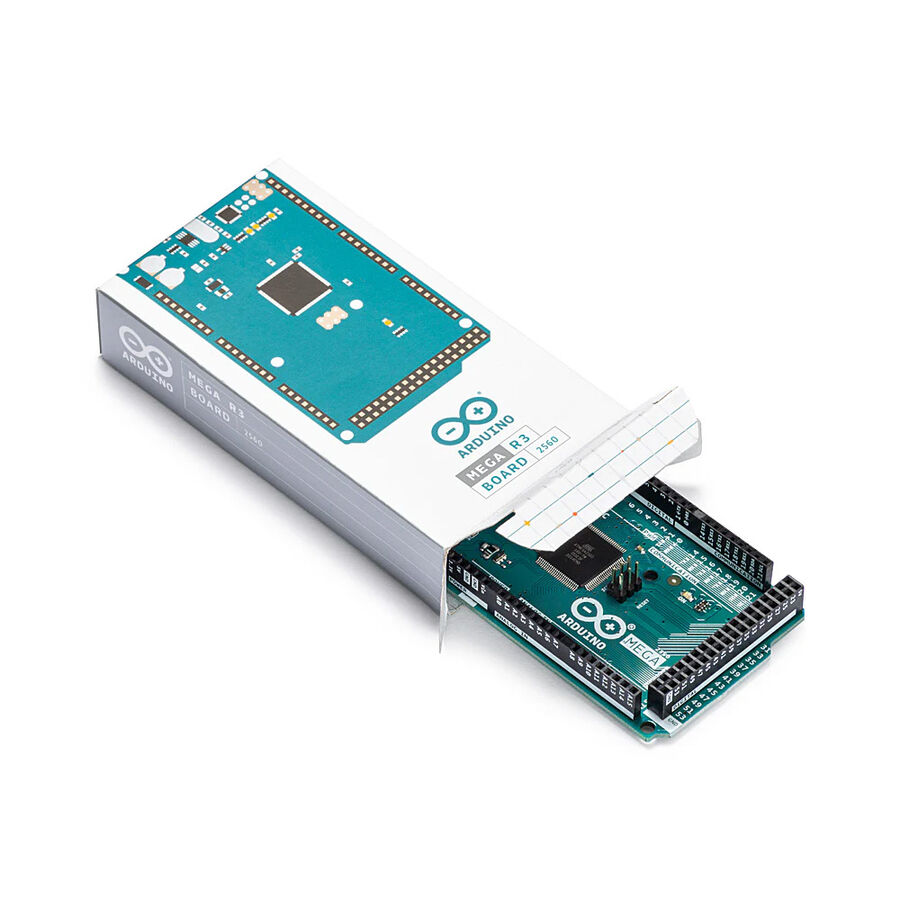

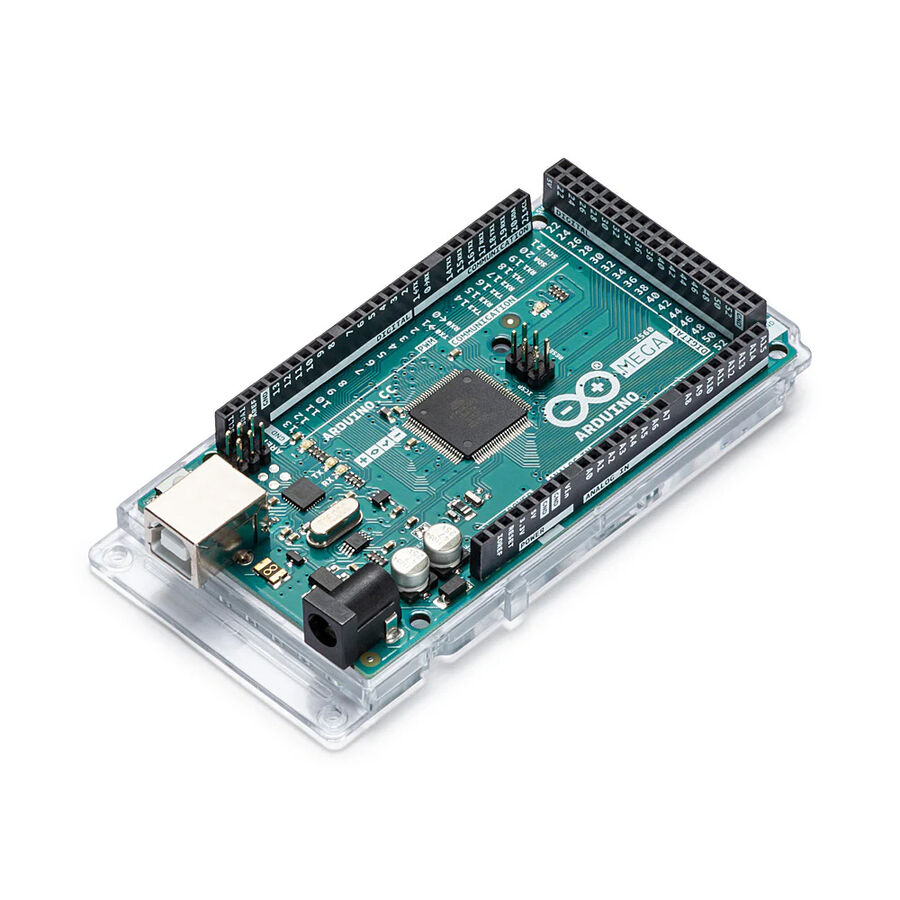

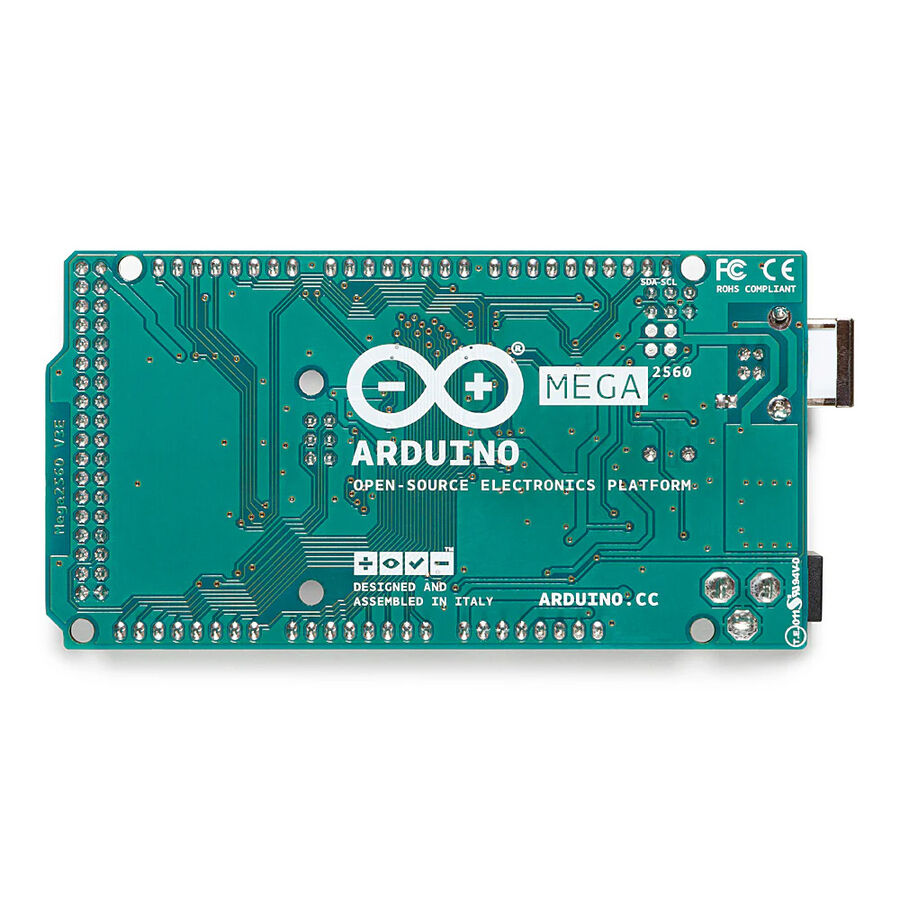

Original Arduino Mega 2560 R3

Arduino Mega 2560 R3 Original

What's new in Revision 3? In addition to all the features in Arduino Mega and Mega 2560

Thanks to the ATmega16U2 chip instead of FTDI and ATmega8U2, which enables programming and communication via USB, you will now be able to program your Arduino much faster and transfer data faster due to the memory on the new chip.

You no longer need a USB driver for Linux and Mac operating systems. For Windows, it will be sufficient to introduce the 'inf' file that comes with the Arduino IDE to windows.

Now you can introduce your Arduino to your computer as a keyboard, mouse, joystick!

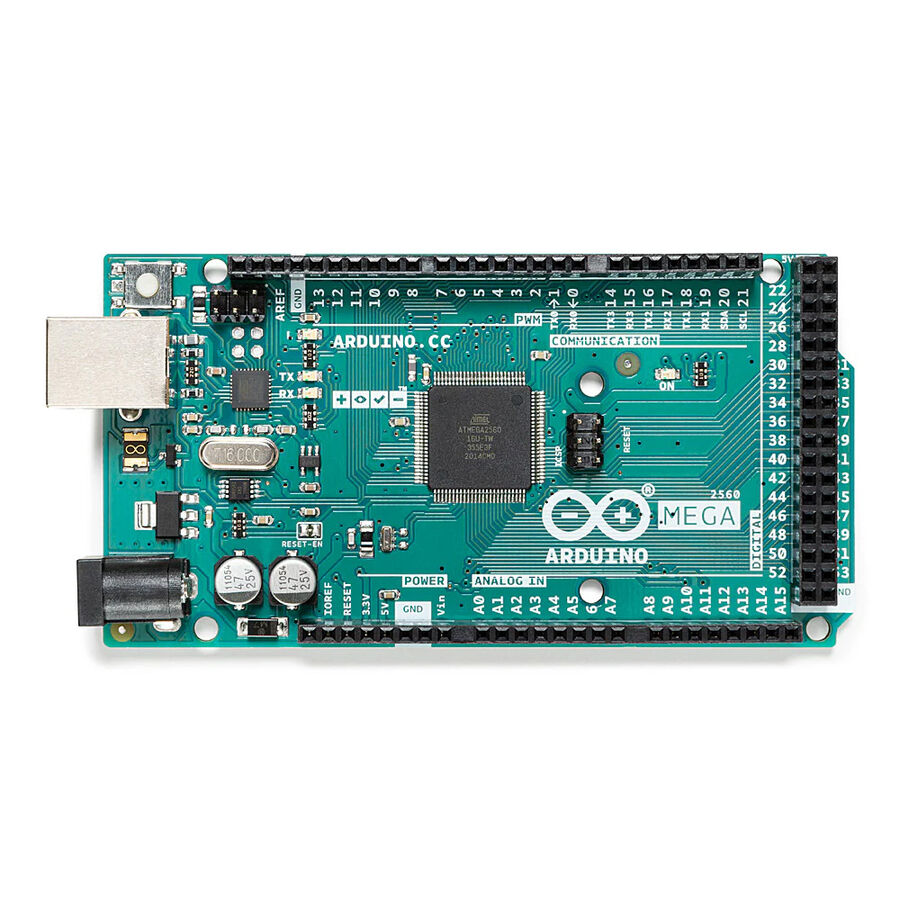

One of the extra SDA and SCL pins (located to the left of the AREF pin).

R3 has IOREF positioned next to the RESET pin and new unnamed pins with no connection, placed for general use. The IOREF pin provides convenience to the Arduino shield family for feeding through the board.

Arduino Mega 2560 is Compatible with All Arduino Shield Family:

Arduino Mega 2560 R3 is an open source physical computing platform built on the foundations of a simple I / O board and the development environment implementing the Processing / Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (eg Flash, Processing, MaxMPS). Open source IDE (ardufun.com), free download (currently Mac OS X, Windows, and Linux supported).

The latest version of this Arduino family, the difference from the previous version of Arduino Mega 2560 is that it uses ATmega8U2 chip instead of FTDI chip. This chip will enable faster transfer transition and direct recognition on Linux and Mac operating systems without the need for drivers (inf file for Windows).

Arduino Mega 2560 R3 Technical Specifications

Documents

• Arduino Mega 2560 R3 DatasheetCheck the file.
