Original Arduino Leonardo

Arduino Leonardo

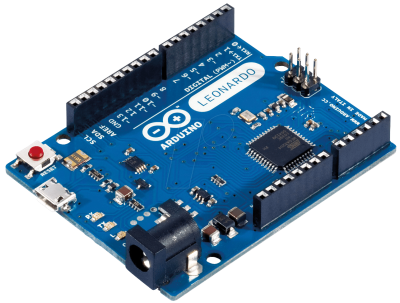

Arduino Leonardo; It is an Atmega32u4 based microcontroller board. It has 20 digital input / output pins (7 of them can be used as PWM output, 12 of them can be used as analog input), 16Mhz crystal, micro usb socket, power socket, ICSP connector and reset button. There is everything necessary for the operation of the microcontroller on the board. It can be easily connected to a computer via a USB cable and can be operated with an adapter or battery.

Arduino Leonardo Technical Specifications

• Microcontroller: ATmega32u4
• Working Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limit): 6-20V
• Digital I / O Pins: 20 (7 of them are PWM outputs, 12 of them are analog inputs)
• Analog Input Pins: 12
• Current per I / O: 40 mA
• Current for 3.3V Output: 50 mA
• Flash Memory: 32 KB (ATmega32u4) 4 KB of which is used by bootloader
• SRAM: 2.5 KB (ATmega32u4)
• EEPROM: 1 KB (ATmega32u4)
• Operating Frequency: 16 MHz
• Length: 68.6 mm
• Width: 53.4 mm
• Weight: 20 g

What is Arduino?

ArduinoIt is an open source electronic platform that offers easy-to-use software and hardware. It is designed for anyone to easily develop prototypes and make interactive projects. BasicallyATMEL microcontrollersUsing the Arduino platform, with its libraries developing over the years and the community that wrote these libraries, it offers easy and accessible solutions for anyone who wants to improve themselves in the field of electronics and programming.

Arduino is an open source platform, that is, all products, related software and designs of Arduino are openly shared with everyone. This allows anyone who wants to produce Arduino, and many electronics companies around the world produce Arduino clones. This is beneficial in terms of offering many types and price ranges to users.

The more popular and useful the Arduino's hardware is, the more useful and popular its software is. Arduino software development platform (IDE) can be used not only for Arduino but also for different development / prototype boards in the electronics market. With its numerous libraries, you can find the libraries you are looking for for any kind of expansion board you want. Libraries can be uploaded through the Arduino software development platform without any problem.
