Clone Arduino Nano 328 - FT232RL

Clone Arduino Nano 328It is basically a model with the same features as the Arduino Uno but much smaller in size. Like Arduino UnoATmega328 microcontrollerHe uses his. Thanks to its similarity with Uno, you can use any software written for Uno with Nano as you wish.

The main difference in this clone of Arduino Nano, which is one of the usual standard boards of Arduino, is the programming integration (USB-Serial converter)FT232RLto be.

Although it has a few minor differences from the original Arduino, there is no difference in terms of usage, software and compatibility of expansion boards. You can find the necessary drivers for Linux, Windows, Mac OS X in the documents below.

Clone Arduino Nano 328 - FT232RL Features

Microcontroller: ATmega328P
Working Voltage: 5 V
Digital I / O Pins: 14 (6 of them can be used as PWM output)
Analog Input Pins: 8
DC Current per I / O Pin: 40 mA
Flash Memory: 32 KB (ATmega328) 2 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Dimensions: 0.73 inches x 1.70 inches
Length: 45 mm
Width: 18 mm
Weight: 7 g

What is Arduino?

ArduinoIt is an open source electronic platform that offers easy-to-use software and hardware. It is designed for anyone to easily develop prototypes and make interactive projects. BasicallyATMEL microcontrollersUsing the Arduino platform, with its libraries developing over the years and the community that wrote these libraries, it offers easy and accessible solutions for anyone who wants to improve themselves in the field of electronics and programming.

Arduino is an open source platform, that is, all products, related software and designs of Arduino are openly shared with everyone. This allows anyone who wants to produce Arduino, and many electronics companies around the world produce Arduino clones. This is beneficial in terms of offering many types and price ranges to users.

The more popular and useful the Arduino's hardware is, the more useful and popular its software is. Arduino software development platform (IDE) can be used not only for Arduino but also for different development / prototype boards in the electronics market. With its numerous libraries, you can find the libraries you are looking for for any kind of expansion board you want. Libraries can be uploaded through the Arduino software development platform without any problem.

Documents

Arduino Software Development Platform (IDE)Check out the page.

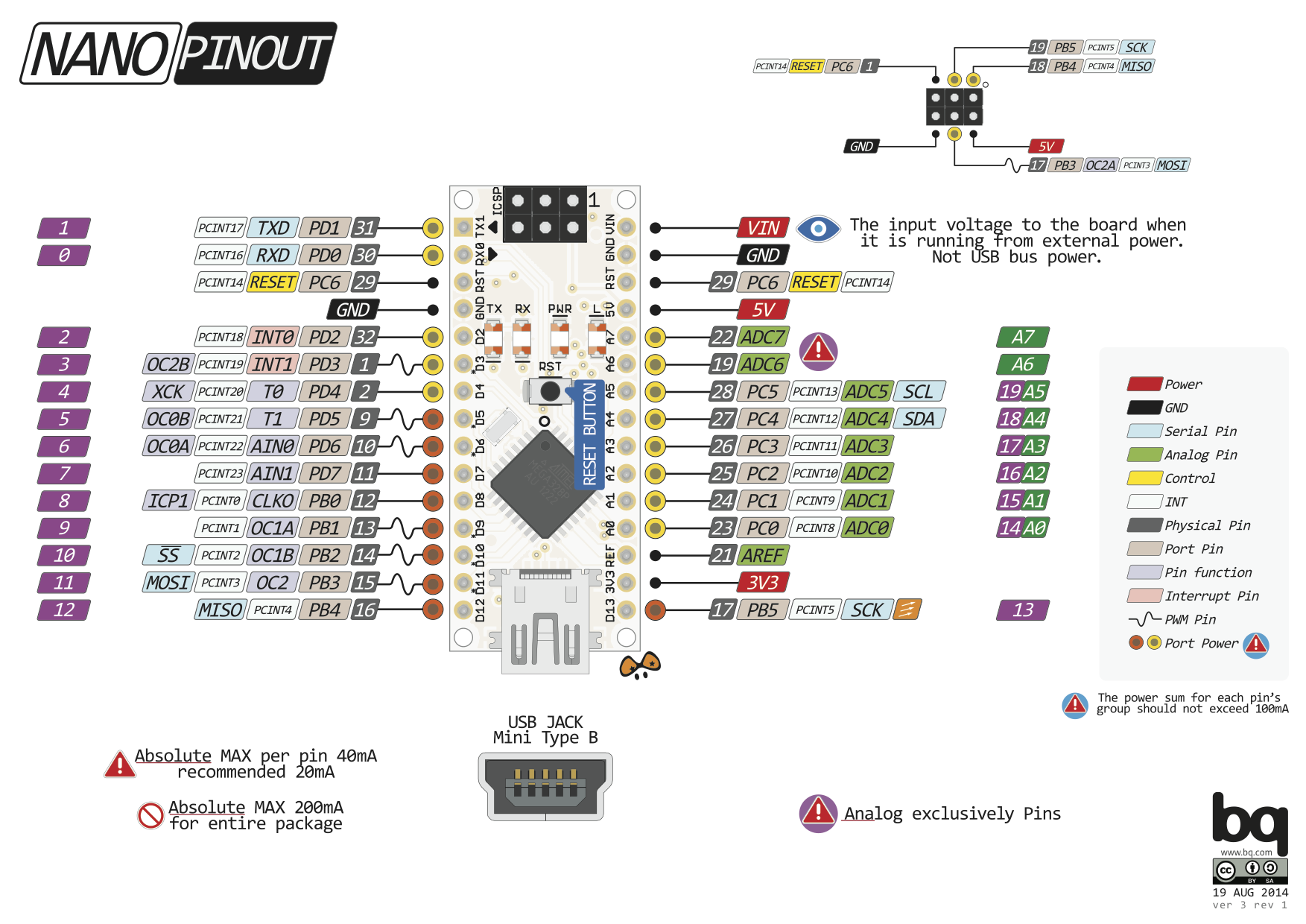

Arduino Nano 328 Pinout DiagramCheck the file.
FDTI Driver for All Operating SystemsCheck out the file.

Useful Links

You can examine Arduino Training Sets, Sensors, Modules and Expansion cards and all other accessories.

" ["DOCUMENT_INFO"]=> string(0) "" ["WARRANTY_INFO"]=> string(0) "" ["DELIVERY_INFO"]=> string(0) "" ["WAREHOUSE"]=> string(15) "R2-004 - İthal" ["DELIVERY_DAY"]=> string(0) "" ["IS_VIDEO_ACTIVE"]=> string(1) "0" ["NOTES"]=> string(0) "" ["TAGS"]=> array(0) { } ["IS_ORDER_NOTE_ACTIVE"]=> bool(false) ["IS_CASH_POINT_ACTIVE"]=> bool(false) ["RELATED_PRODUCTS_IDS1"]=> string(0) "" ["RELATED_PRODUCTS_IDS2"]=> string(0) "" ["RELATED_PRODUCTS_IDS3"]=> string(0) "" ["RELATED_PRODUCTS_IDS1_COUNT"]=> int(0) ["RELATED_PRODUCTS_IDS2_COUNT"]=> int(0) ["RELATED_PRODUCTS_IDS3_COUNT"]=> int(0) ["IS_POPUP_PHOTO_ACTIVE"]=> string(1) "1" ["MIN_ORDER_COUNT"]=> string(1) "1" ["DISPLAY_GAIN"]=> bool(false) }

Arduino Nano 328 - Clone - FT232RL - (USB Cable Included)

Name: Arduino Nano 328 - Clone - FT232RL - (USB Cable Included)
Brand: DirencNet
SKU: T177
Price: 317.36 TRY
Availability: OutOfStock

Marka/Menşei: DirencNet

Stok Kodu : DSTK0715

264.47 TL + KDV

317.36 TL KDV Dahil

Out of stock Alert when in stock

Features
Payment Options
Comments (0)
Images

Clone Arduino Nano 328 - FT232RL
Clone Arduino Nano 328It is basically a model with the same features as the Arduino Uno but much smaller in size. Like Arduino UnoATmega328 microcontrollerHe uses his. Thanks to its similarity with Uno, you can use any software written for Uno with Nano as you wish.
The main difference in this clone of Arduino Nano, which is one of the usual standard boards of Arduino, is the programming integration (USB-Serial converter)FT232RLto be.
Although it has a few minor differences from the original Arduino, there is no difference in terms of usage, software and compatibility of expansion boards. You can find the necessary drivers for Linux, Windows, Mac OS X in the documents below.
Clone Arduino Nano 328 - FT232RL Features
- Microcontroller: ATmega328P
- Working Voltage: 5 V
- Digital I / O Pins: 14 (6 of them can be used as PWM output)
- Analog Input Pins: 8
- DC Current per I / O Pin: 40 mA
- Flash Memory: 32 KB (ATmega328) 2 KB used by bootloader
- SRAM: 2 KB (ATmega328)
- EEPROM: 1 KB (ATmega328)
- Clock Speed: 16 MHz
- Dimensions: 0.73 inches x 1.70 inches
- Length: 45 mm
- Width: 18 mm
- Weight: 7 g
What is Arduino?
ArduinoIt is an open source electronic platform that offers easy-to-use software and hardware. It is designed for anyone to easily develop prototypes and make interactive projects. BasicallyATMEL microcontrollersUsing the Arduino platform, with its libraries developing over the years and the community that wrote these libraries, it offers easy and accessible solutions for anyone who wants to improve themselves in the field of electronics and programming.
Arduino is an open source platform, that is, all products, related software and designs of Arduino are openly shared with everyone. This allows anyone who wants to produce Arduino, and many electronics companies around the world produce Arduino clones. This is beneficial in terms of offering many types and price ranges to users.
The more popular and useful the Arduino's hardware is, the more useful and popular its software is. Arduino software development platform (IDE) can be used not only for Arduino but also for different development / prototype boards in the electronics market. With its numerous libraries, you can find the libraries you are looking for for any kind of expansion board you want. Libraries can be uploaded through the Arduino software development platform without any problem.
Documents
- Arduino Software Development Platform (IDE)Check out the page.
- Arduino Nano 328 Pinout DiagramCheck the file.
- FDTI Driver for All Operating SystemsCheck out the file.
Useful Links
You can examine Arduino Training Sets, Sensors, Modules and Expansion cards and all other accessories.
