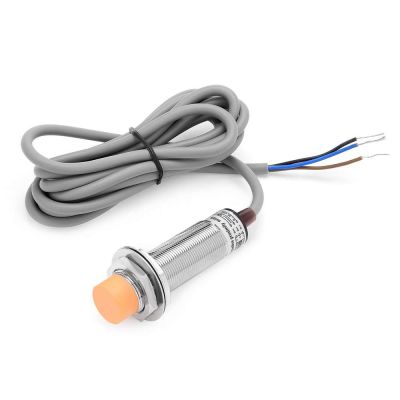

Capacitive PNP Proximity Sensor LJC18A3-BZ / BY

LJC18A3-BZ / BY Capacitive PNP Proximity Sensor

Capacitive PNP Proximity Sensor,Detects metal and non-metal objects as close as 1-10mm. You can use this sensor in industrial security systems. The sensor operating in the voltage range of 6V DC to 36V DC gives the output according to the input voltage. Working with PNP (Normally Open) logic, the sensor sends 0V to the output when there is no object in front, and the input voltage to the output with a small loss when there is an object in front of it.

You can check whether it detects the object in front of it with the LED behind it. The product is 18mm in diameter. Sensing range may vary depending on the voltage supplied. You can adjust the measurement precision with the trimpot located behind it.

Capacitive PNP Proximity Sensor LJC18A3-BZ / BY Technical Specifications

• Sensor Body: Metal
• Model Number: LJC18A3-BZ / BY
• Sensor Type: Capacitive proximity sensor
• Detectable Objects: Metal and non-metal objects
• Working Voltage: DC 6-36V (Recommended: 12V)
• Working Current: 300mA
• Sensing Distance: 1 - 10mm
• Response Frequency: 100Hz
• Output type: PNP, Normally Open (NO)
• Operating Temperature: between -25 ° C and + 65 ° C
• Dimensions: 7.5 x 1.8cm (length x diameter)
• Cable Length: 120cm
• Weight: 85gr
• Connection style:
  • Brown: Feed (+) Plus
  • Blue: Feed (-) Minus
  • Black: Exit
