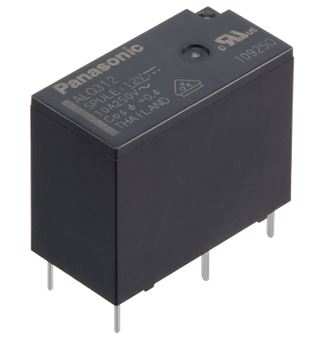

JQ1P-12V-F Panasonic Relay (12Vdc 10A) - ALQ112

12V 10A Relay JQ1P-12V-F

RelayIt is a mechanical switching unit that can be controlled electrically. It consists of two main parts: relay coil and contactors. The relay coil, over which current flows, creates a magnetic field and attracts the contacts. Thus, relay contacts change position.

It is one of the circuit components preferred in telecom applications, gas detector circuits, RF control applications, Infrared control applications, small volume circuits (gum relay) etc.

It is used in the control of load currents between 1A-40A at operating voltages of 5V, 9V, 12V, 24V, 48V, 220V. Single and multiple contact output possibilities are available.

JQ1P-12V-F Panasonic Relay (12Vdc 10A) - ALQ112 Technical Specifications

Mounting Type: THT

Contact Form: SPDT (1 Form C)

Coil Type :: Non Latching

Contact Current: 10A

Coil Voltage: 12VDC

Coil Current: 33.3mA

Contact Voltage: 125VAC / 30VDC

Coil Resistance: 360 Ohms

Coil Power: 400mW

Working Temperature: -40 ° C ~ + 70 ° C

Number of Pin: 5PIN

Dimensions (mm) WxLxH: 20.00x10.00x15.60

Rohs: ROHS
