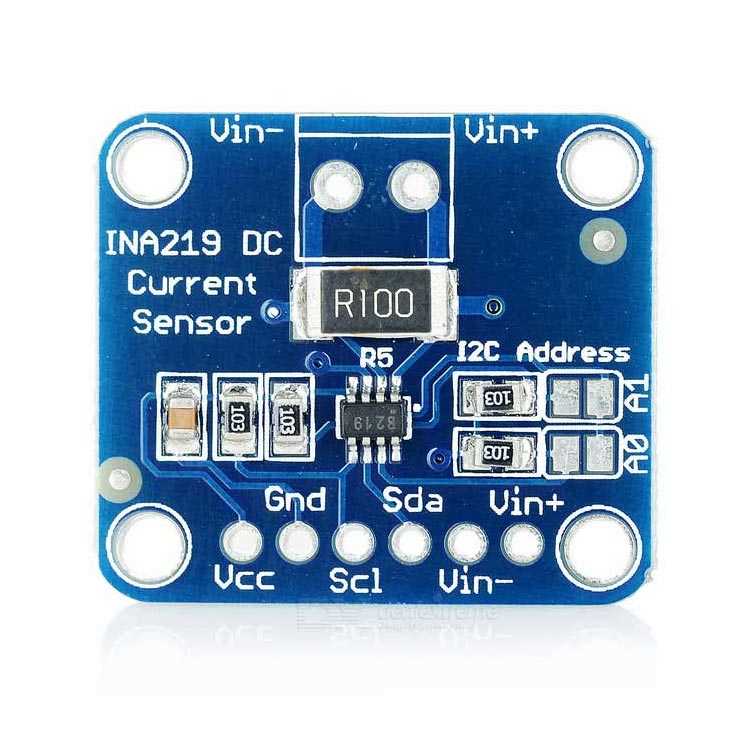

INA219 I2C Bidirectional Current Sensor Module

INA219 I2C Bidirectional Current Sensor Module

INA219 bi-directional current / power monitoring control circuitUsing the I2C serial protocolcurrent sensor moduleStop. INA219 can read not only the changes on the shunt resistor, but also the voltage values on it, so that the power above it can be calculated.

This module comes with precision resistance at 0.1 ohm 1% tolerance. With the resistance above it, it can measure in the range of ± 3.2A, with this resistance it offers 0.8mA resolution at 12 bits.

INA219 I2C Bidirectional Current Sensor Module Features

• 0.1 ohm 1% 2W current sensing resistance
• Target voltage up to + 26V
• Current measurement up to ± 3.2A with ± 0.8mA resolution
• 3-5 Volt operating range
• I2C serial protocol
• 2.28 cm x 2.03 cm PCB
• PCB: 1.9g
