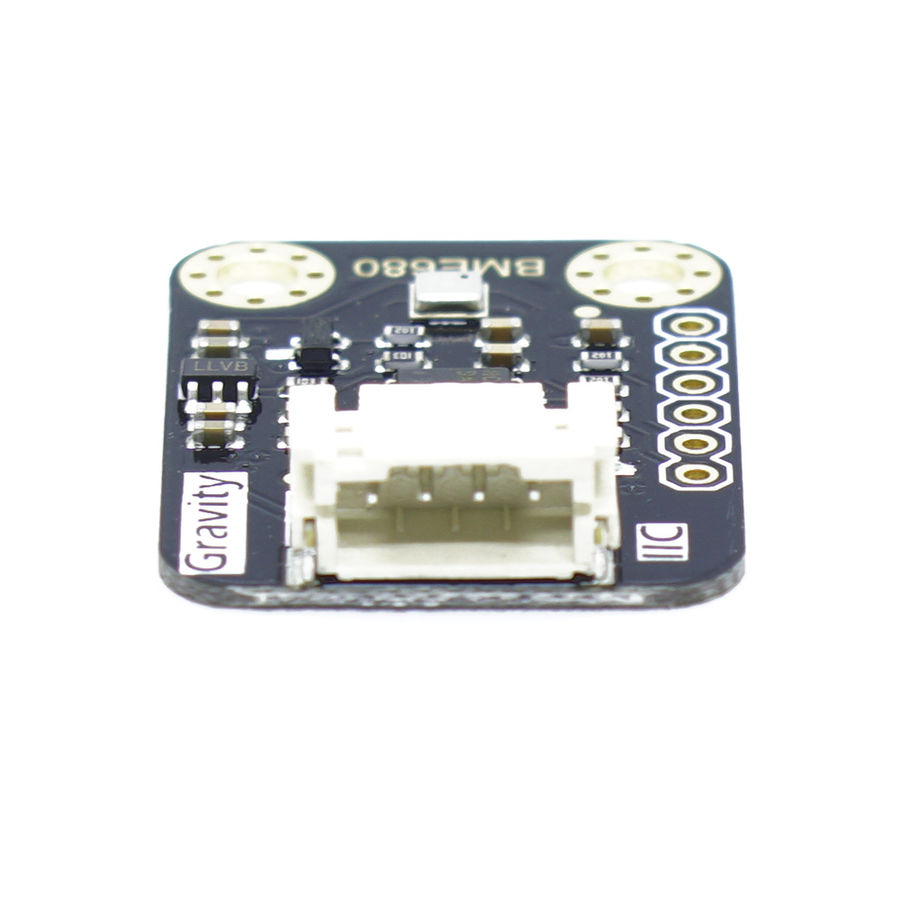

I2C BME680 Gas, Pressure, Temperature and Humidity Sensor Module - Gravity

I2C BME680 Gas, Pressure, Temperature and Humidity Sensor Module

I2C BME680 Gas, Pressure, Temperature and Humidity Sensor ModuleIt is a practical solution that offers 4 different ambient sensors in a single module. It measures the humidity, temperature, pressure and air quality in the environment and transfers it to your microcontroller with only 2 pins thanks to the I2C communication protocol. It is very practical especially with its compatibility with Arduino and Raspberry Pi projects. With its small dimensions, it can be used in many projects such as environmental monitoring, home automation and control, IoT (internet of things), wearable device and GPS development. It can be directly connected to 3.3V and 5V modules. There is a spare SPI link connector for more data transfer. You can view the I2C and SPI connection types from the pictures below.

I2C BME680 Gas, Pressure, Temperature and Humidity Sensor Module - Gravity DFRobot Technical Specifications

• Input Voltage: 3.3V - 5.0V
• Working Current: 5mA (25mA at VOC)
• Primary connection way: Gravity I2C
• Backup link path: SPI
• Temperature Measurement Range: -40^{she is}C / + 85^{she is}C
• Temperature Measurement Accuracy: ± 1.0^{she is}C (0/65^{she is}C)
• Humidity Measuring Range: 0-100% rH
• Humidity Measurement Accuracy: ± 3% rH (20-80% rH, 25^{she is}C)
• Atmospheric Pressure Measurement Range: 300-1100hPa
• Atmospheric Pressure Measurement Accuracy: ± 0.6hPa (300-1100hPa, 0/65^{she is}C)
• IAQ (Indoor Air Quality) Range: 0/500 (the larger one)
• Module Size: 30 × 22 (mm)

Documents

• I2C BME680 Gas, Pressure, Temperature and Humidity Sensor Module DatasheetCheck the file.
