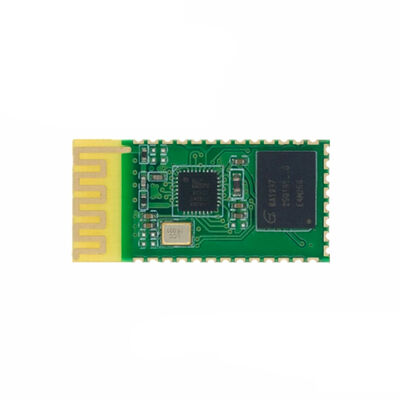

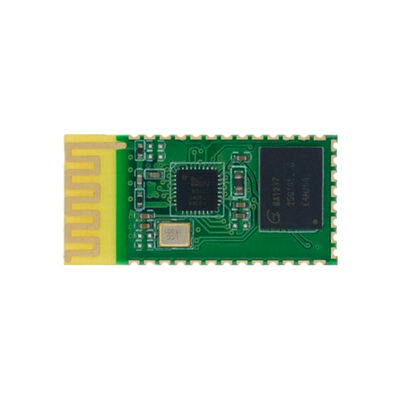

HC05 Bluetooth Module

HC05 Bluetooth Module

NC-OS module is an easy-to-use Bluetooth SPP (Serial Port Protocol) module designed for transparent wireless serial connection setup.

It is Bluetooth V2.0 + EDR (Enhanced Data Rate) 3Mbps Modulation, fully compatible with serial port Bluetooth module, full 2.4GHz radio transceiver and baseband.

CSR Bluecore 04-Uses Bluetooth system with external single chip CMOS technology and AFH (Adaptive Frequency Hopping Feature).

It has a small footprint as small as 12.7mmx27mm. It has been designed with the in mind that it will simplify the overall design / development cycle.

HC05 Bluetooth Module Technical Specifications

• Typical -80dBm sensitivity
• RF transmit power up to + 4dBm
• Low Power 1.8V Operation, 1.8 - 3.6VI / O
• PIO control
• UART interface with programmable baud rate
• With integrated antenna
• With edge connector
