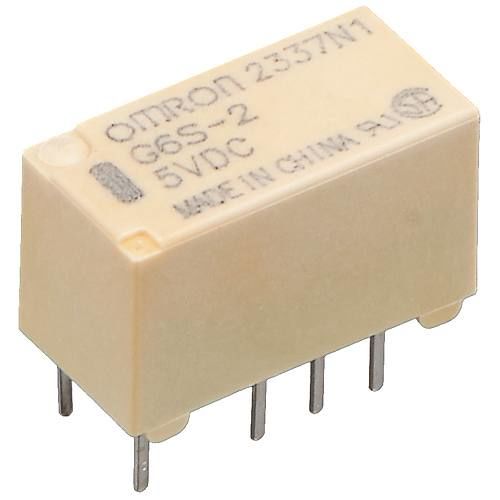

G6S25DC 5V 2A Omron Telecom Relay

5V 2A Relay G6S25DC

RelayIt is a mechanical switching unit that can be controlled electrically. It consists of two main parts: relay coil and contactors. The relay coil, over which current flows, creates a magnetic field and attracts the contacts. Thus, relay contacts change position.

It is one of the circuit components preferred in telecom applications, gas detector circuits, RF control applications, Infrared control applications, small volume circuits (gum relay) etc.

It is used in the control of load currents between 1A-40A at operating voltages of 5V, 9V, 12V, 24V, 48V, 220V. Single and multiple contact output possibilities are available.

G6S25DC 5V 2A Omron Telecom Relay Specifications

Manufacturer: OMRON

Relay Type: RELAY TELECOM

Mounting Type: THT

Contact Form: DPDT (2 Form C)

Coil Type: Non Latching

Contact Current: 2A

Coil Voltage: 5VDC

Coil Current: 28.10mA

Contact Voltage: 250VAC / 220VDC - Max

Coil Resistance: 178R

Coil Power 140mW

Working Temperature: -40 ° C ~ + 85 ° C

Number of Pin: 8PIN

Dimensions (mm) WxLxH: 14.80x7.30x9.20

Rohs: ROHS
