ESP-01M WiFi Module (Miniature ESP-8266)

ESP-01M WiFi Module

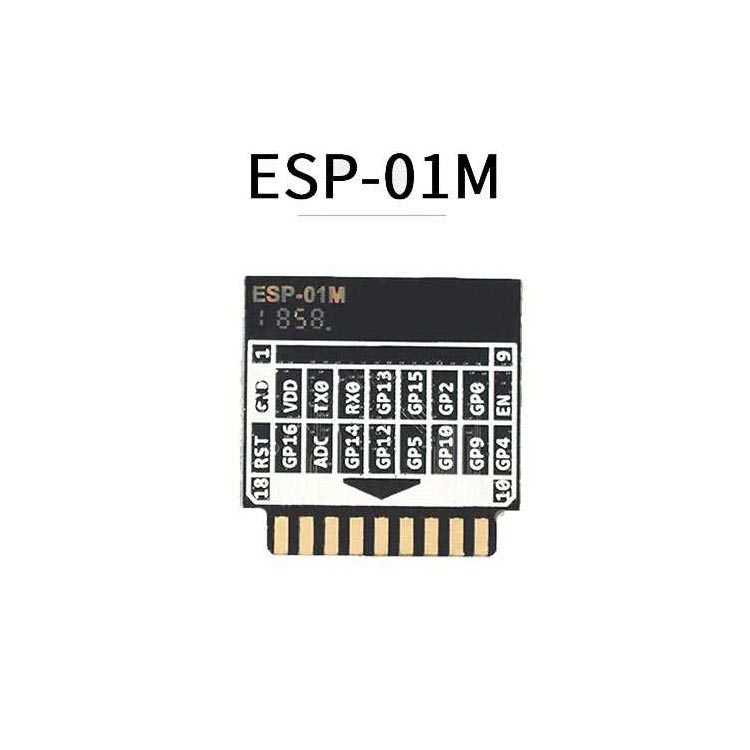

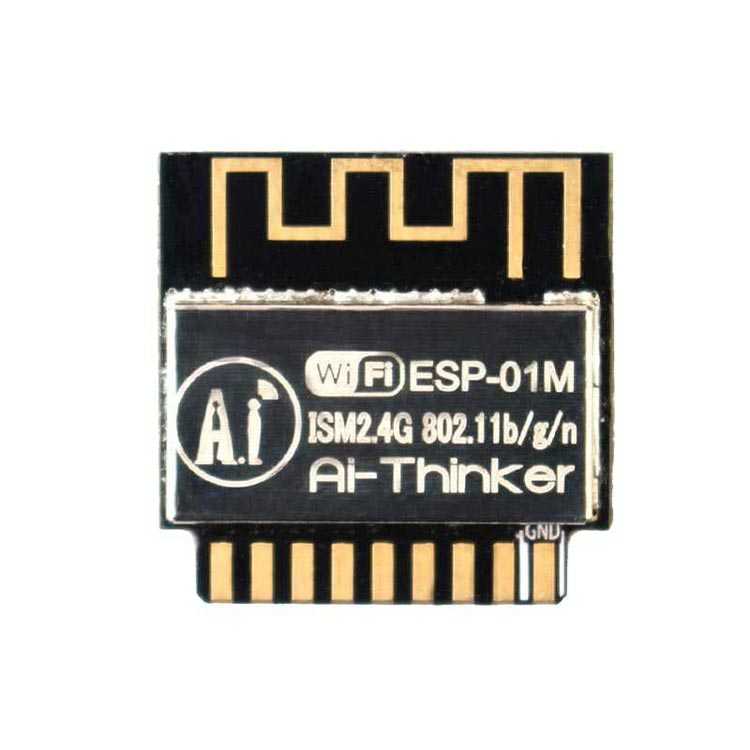

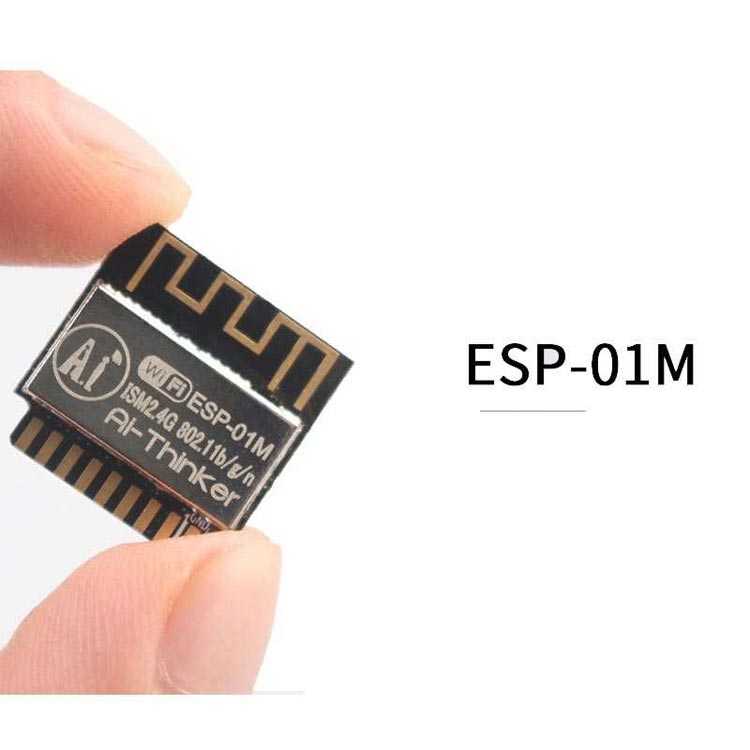

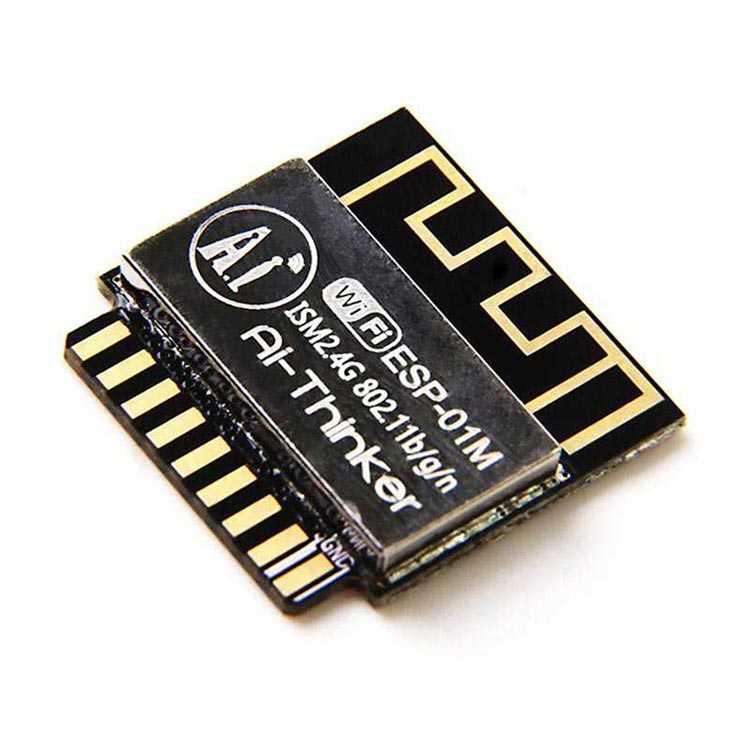

ESP-01M WiFi module ESP-8266It is a miniature version of the module. Space is saved by giving the module outlets from double-sided copper surfaces instead of pins. With the ESP processor and GPIO outputs on it, you can control your projects over Wifi.

Power consumption Ratings:

• In average use: 71 mA
• Maximum: 300 mA
• Modem in Sleep mode: 20mA
• Deep Sleep: 0.02mA

ESP-01M Wifi Module Features

• Size: 18 * 18 * 2.8 (± 2) mm
• SPI Flash: 1 MB

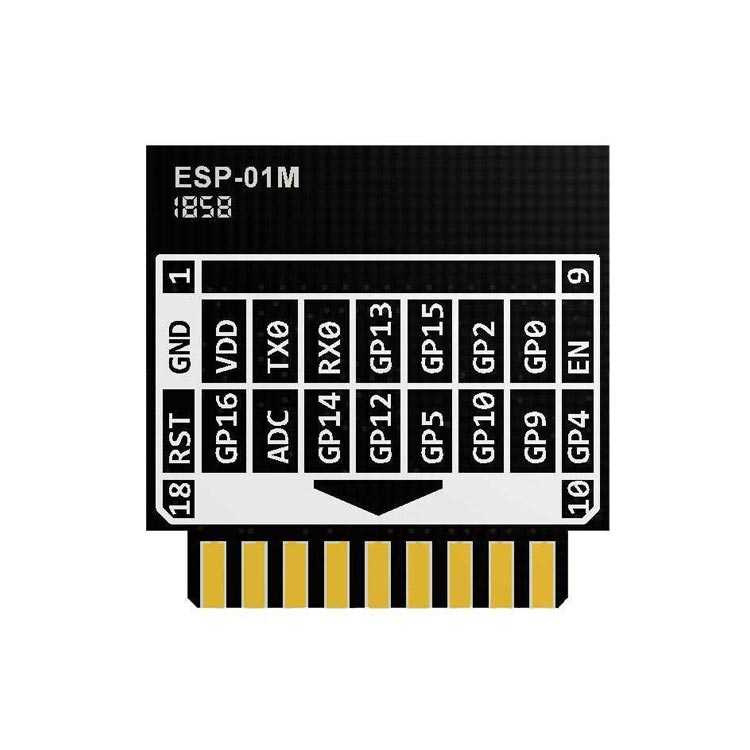

• Available interfaces: UART / GPIO / ADC / PWM
• IO amount: 11
• Series rate: 300 bps-4608000 (default 115200bps)
• RF range: 2412-2484 MHz
• Antenna type: Copper on PCB
• Transmission power: 802.11b: 16 ± 2 dB (@ 11 Mbps) 802.11g: 14 ± 2 dB (@ 54 Mbps) 802.11n: 13 ± 2 dB (@ HT20, MCS7)
• Security: WEP / WPA-PSK / WPA2-PSK
• Supply voltage: 3.0V-3.6V
• Besleme akımı:>300mA
• Weight: 0.4g
