Beetle BLE - Arduino Bluetooth 4.0 Module (BLE)

Beetle BLE - Arduino Bluetooth 4.0 Module (BLE)

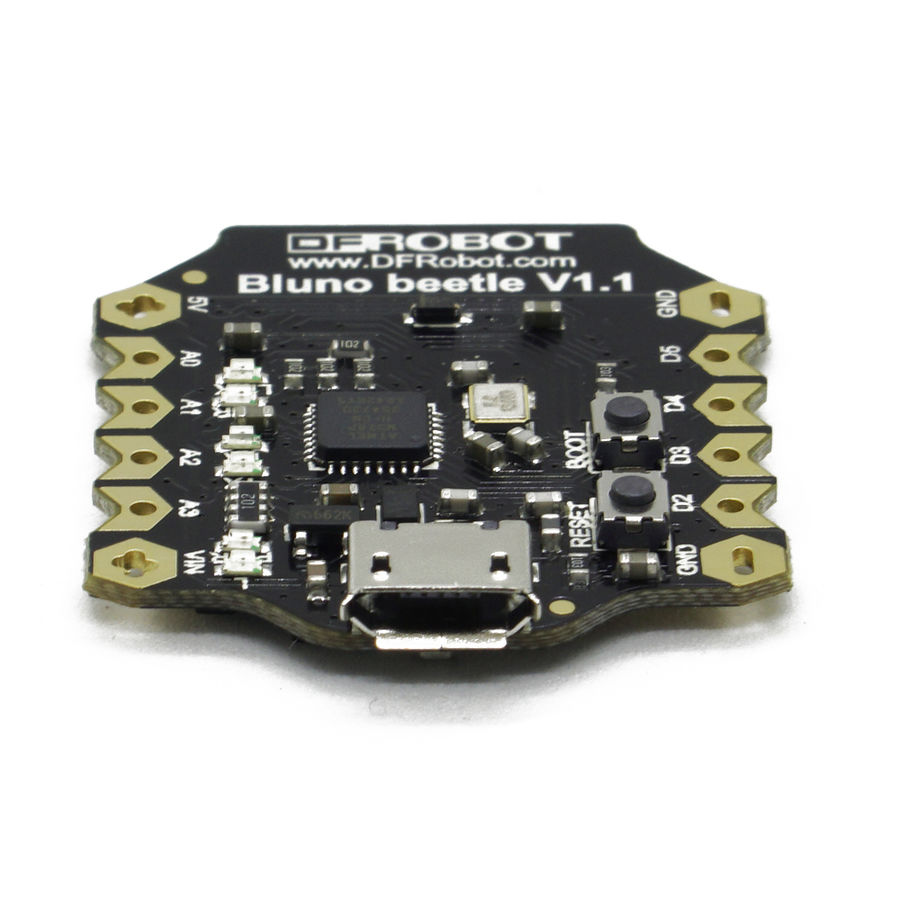

Beetle Ble (Former name Bluno Beetle) is an Arduino Uno based panel with bluetooth 4.0 (BLE). It is probably the smallest Arduino BLE board on the market. It uses the standard Arduino IDE to upload codes without any extra libraries and drivers. This Beetle BLE is another milestone in the Beetle line that allows DIY users to have more options in project design. Fully compatible with Bluno in instructions and procedures. Supports Bluetooth HID and ibeacon modes.

Beetle BLE can be used for disposable projects such as DIY projects, workshops, gift projects, wearable and educational E-Textile.

Beetle can be a perfect solution for students and manufacturers who have budget problems when it comes to purchasing hardware.

Beetle BLE - Arduino Bluetooth 4.0 Module Technical Specifications

• ATmega328 @ 16MHz
• Bluetooth Low Energy (BT 4.0)
• Micro USB port
• Super Compact Size
• Support bluetooth HID and ibeacon
• Compatible with all DFRobot Bluno Series
• Support Wireless Programming
• Bluetooth Chip: CC2540
• Sensitivity: -93dBm
• Working Temperature: -10 ℃ ~ +85 ℃
• Maximun Mesafe: 50m (1968.50 ") (Açık alan)
• Microcontroller: ATmega328
• Clock frequency: 16 MHz
• Working voltage: 5V DC
• Input voltage:<8V (Vin <8V)
• Digital Pin x4
• Analog Pin x4
• PWM Output x2
• UART interface x1
• I2C interface x1
• Micro USB interface x1
• Power port x2
• Boyut: 28,8 mm x 33,1 mm (1,13 "x 1,30")
• Weight: 10g
