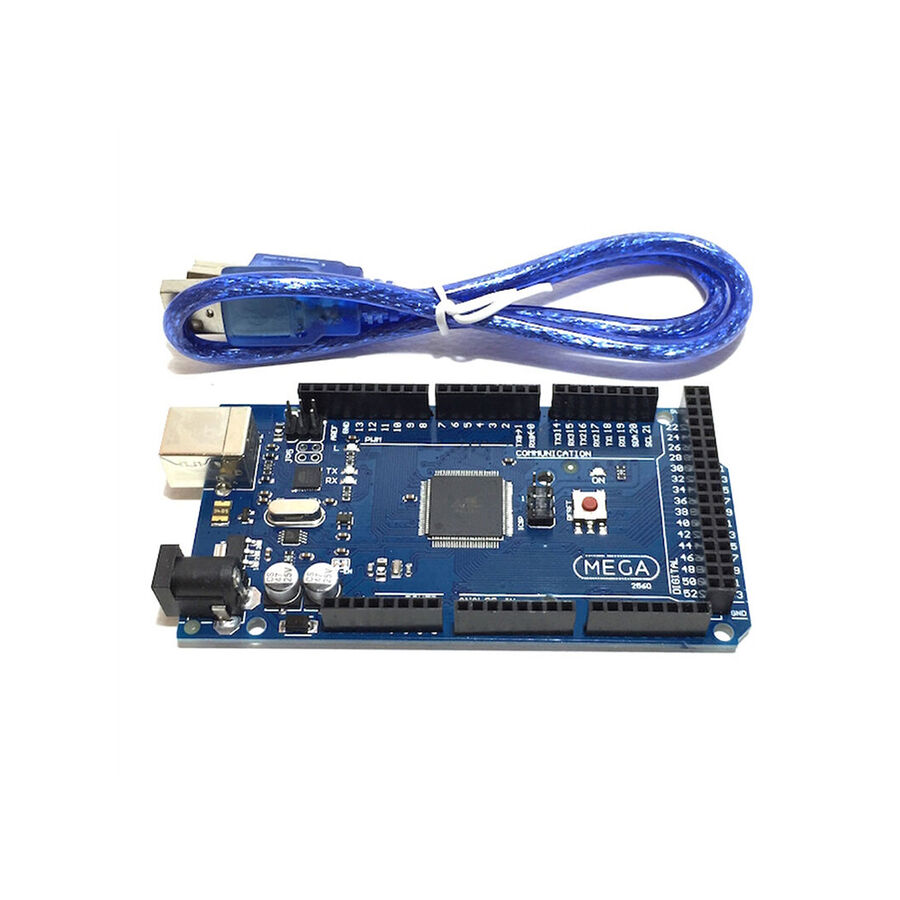

Arduino Mega 2560 R3 Clone (USB Cable Included)

Clone Arduino Mega 2560 R3 - with USB Cable

Arduino Mega is an Atmega2560 based microcontroller board.. It has 54 digital input / output pins and 15 of them can be used as PWM outputs. It has 16 analog inputs, a 16 MHz crystal oscillator, a USB connector, a power jack, an ICSP connector and a reset button.

Arduino Mega is compatible with most expansion boards designed for UNO.

ItArduino Mega 2560 R3 CloneThe main difference between Arduino Mega 2560 R3 Clone CH340 Chip is that the programming integration (USB-Serial converter) used by the CH340 Chip model is CH340.

Arduino Mega 2560 R3 Clone Features

• Microcontroller: ATmega2560
• Working voltage: 5V
• Input voltage (recommended): 7-12V
• Input voltage (limit values): 6-20V
• Digital I / O Pins: 54 (of which 15 provide PWM output)
• PWM Digital I / O Pins: 15
• Analog Input Pins: 16
• DC current per I / O Pin: 20 mA
• 3.3V Pin DC current: 50 mA
• Flash Memory: 256 KB (ATmega2560) 8 KB used by bootloader
• SRAM: 8 KB (ATmega2560)
• EEPROM: 4 KB (ATmega2560)
• Clock Speed: 16 MHz
• Length: 101.52 mm
• Width: 53.3 mm
• Weight: 37 g

What is Arduino?

ArduinoIt is an open source electronic platform that offers easy-to-use software and hardware. It is designed for anyone to easily develop prototypes and make interactive projects. BasicallyATMEL microcontrollersUsing the Arduino platform, with its libraries developing over the years and the community that wrote these libraries, it offers easy and accessible solutions for anyone who wants to improve themselves in the field of electronics and programming.

Arduino is an open source platform, that is, all products, related software and designs of Arduino are openly shared with everyone. This allows anyone who wants to produce Arduino, and many electronics companies around the world produce Arduino clones. This is beneficial in terms of offering many types and price ranges to users.

The more popular and useful the Arduino's hardware is, the more useful and popular its software is. Arduino software development platform (IDE) can be used not only for Arduino but also for different development / prototype boards in the electronics market. With its numerous libraries, you can find the libraries you are looking for for any kind of expansion board you want. Libraries can be uploaded through the Arduino software development platform without any problem.

Documents

• Arduino Software Development Platform (IDE)Check out the page.
• Arduino Mega 2560 R3 Pinout SchemaCheck the file.
