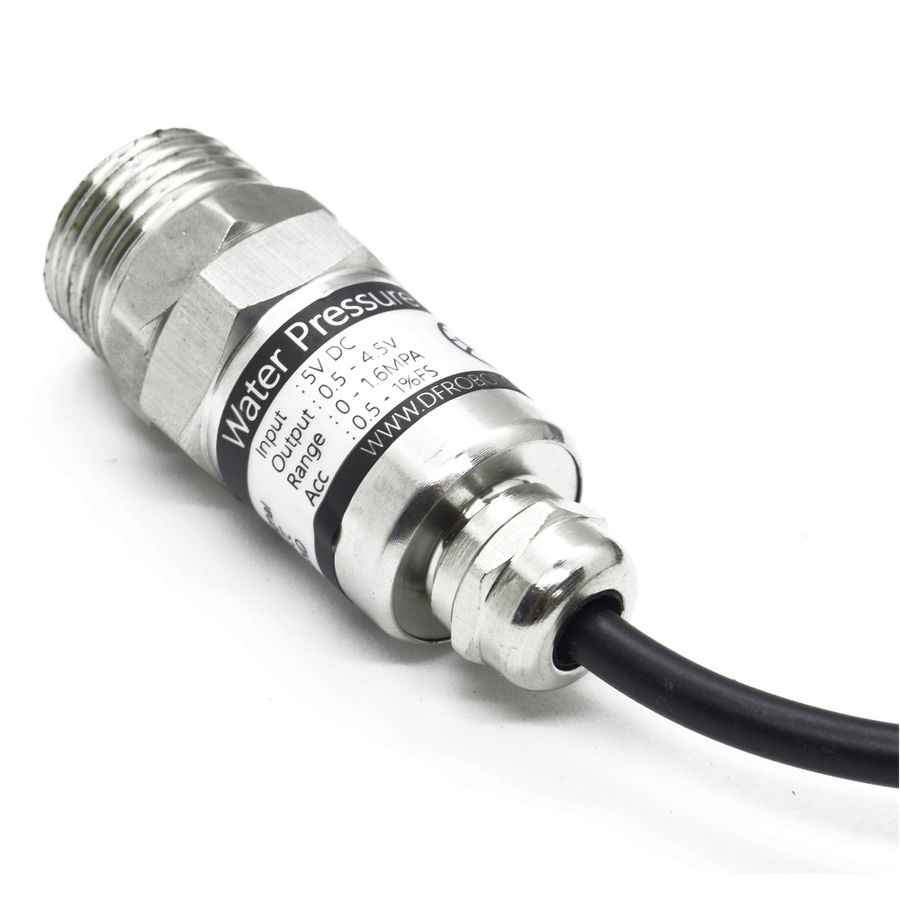

Analog Water Pressure Sensor

Analog Water Pressure Sensor - DFRobot

This Analog Water Pressure sensor works with a standard 5V input. Offering analog output, this sensor offers output between 0.5 and 4.5V. This sensor, which basically works with the stethoscope logic, allows you to measure the presence and pressure of water precisely.

Analog Water Pressure Sensor Specifications

• Medium: liquid / gas without corrosion
• Output type: (Signal-VCC-GND)
• Pressure Measuring Range: 0 ~ 1.6 Mpa
• Input Voltage: +5 VDC
• Output voltage: 0.5 ~ 4.5v
• Measurement Accuracy: 0.5% ~ 1% FS (0.5%, 0 ~ 55 ° C)
• Can be edited with titre: G1 / 4
• Adapter: G1 / 2 to G1 / 4
• Waterproof level: IP68
• Working Temperature: -20 ~ 85 ° C
• Reaction time:<2.0 ms
• Quiescent current: 2.8 mA
• Normal Working Pressure: ≤2.0 Mpa
• Damaged Pressure: ≥3.0Mpa
• Service Life: 10'000'000 times

Documents

• Analog Water Sensor DatasheetCheck the file.
