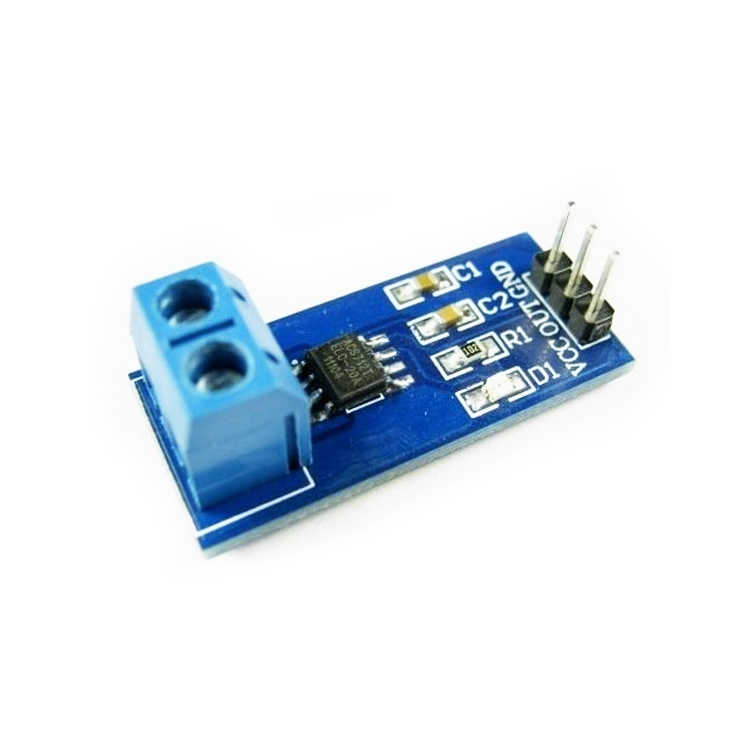

ACS712 Current Sensor Module AC / DC + 5A / -5A

ACS712 AC / DC Current Sensor Module

ACS712 Current Sensor Boardproduct ofcurrent controlIt is a cheap and reliable solution for You can read and control current up to 5 Amps. Since the hall sensor is used in this product, which you can use in motor control circuits, power management and power supply circuits, electrical and electronic circuits are separate from each other. Therefore, the probability of interference is minimized. With this feature, it can be used in circuits that require electrical isolation. IC (current control) sensor can withstand overload conditions up to 5 times. The product can be used in both DC and AC circuits as well as designed to allow bidirectional current flow.

ACS712 Current Sensor + 5A / -5A Module Technical Specifications

• Working Voltage: 3 V - 5.5 V
• Overload warning LED
• PCB board dimensions: 33 (mm) x14 (mm)
• Output Voltage varies 185 mV per Current
• Working Temperature: -40/85 Degrees

Documents

• ACS712 Integration DatasheetCheck the file.
