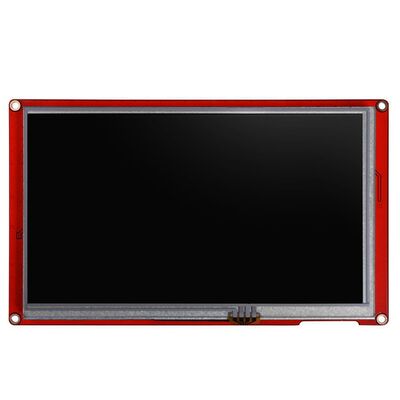

7.0 Inch Nextion HMI Display R-Resistive Display - Touch

7.0 '' Nextion Smart Series HMI R-Resistive Touch Screen

Nextionis a Human Machine Interface （HMI solution that combines a built-in processor and memory touch screen with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop components using drag and drop components (graphic, text, button, slider, etc.) and ASCII text-based instructions to code how components interact on the screen side. The Nextion HMI screen connects to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU may affect, the peripheral MCU can easily update the status and status to the Nextion screen, using simple ASCII text-based instructions.

7.0 '' Nextion Smart Series HMI R-Resistive Touch Screen Technical Specifications

• Product R-Resistive
• Screen Resolution 800 x 480
• Serial Interface Serial
• Screen Type Touch Screen
• TFT display interface N / A
• Ekran Boyutu 7.0 "
• Screen Dimensions 218.1mm x 150mm x 22.5mm
• SD Card Slot
• Touch screen
• Weight 700 g

Documents

• Nextion Resistive Touchscreen DatasheetYou can examine the file.
