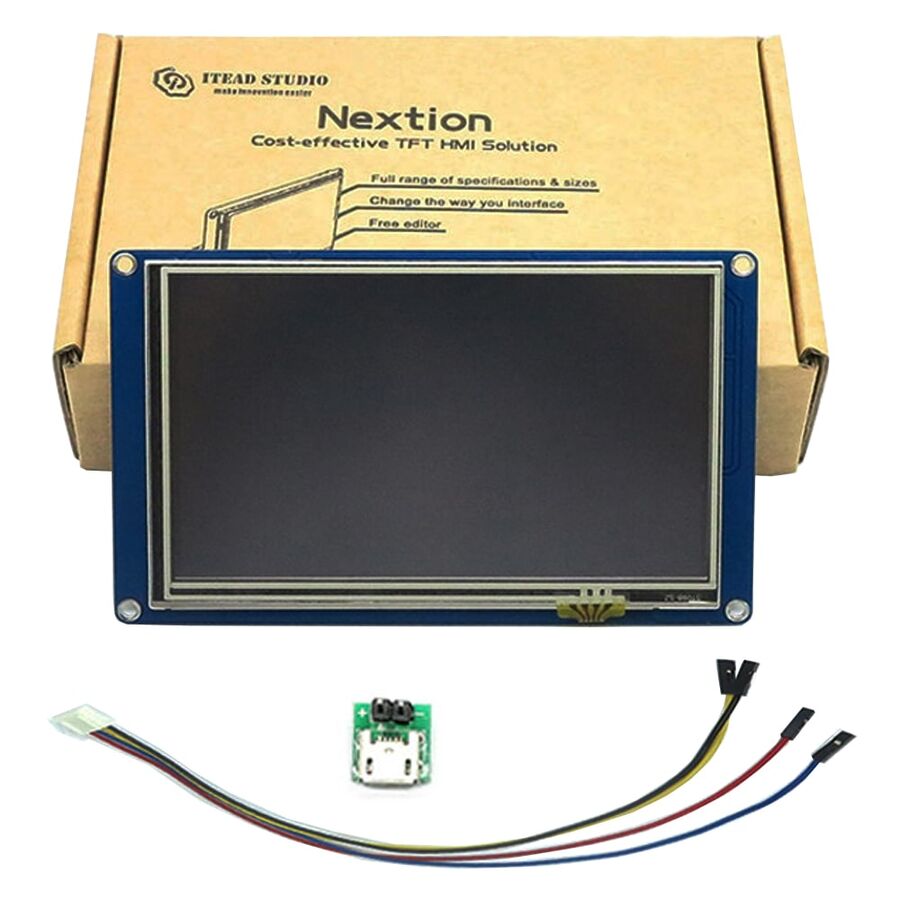

5.0 Inch Nextion HMI Touch TFT Lcd Display - 16MB Internal Memory

5 Inch Nextion HMI Touch TFT Lcd Display - 16MB Internal Memory

Nextion is a Seamless Human Machine Interface (HMI) solution that acts as a control and visualization interface between human and process, machine, application or device. It is the best solution designed to replace traditional LCD and LED Nixie tube.

Nextion HMI Smart 5 Inch Touchscreen TFT LCD Display

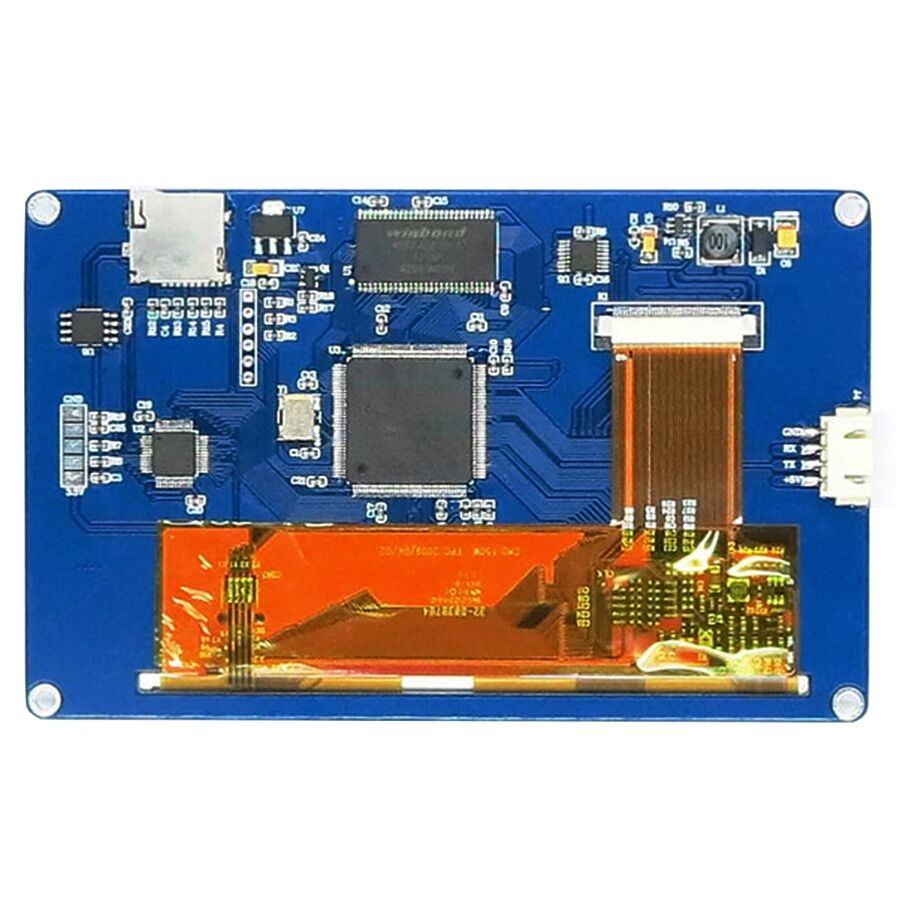

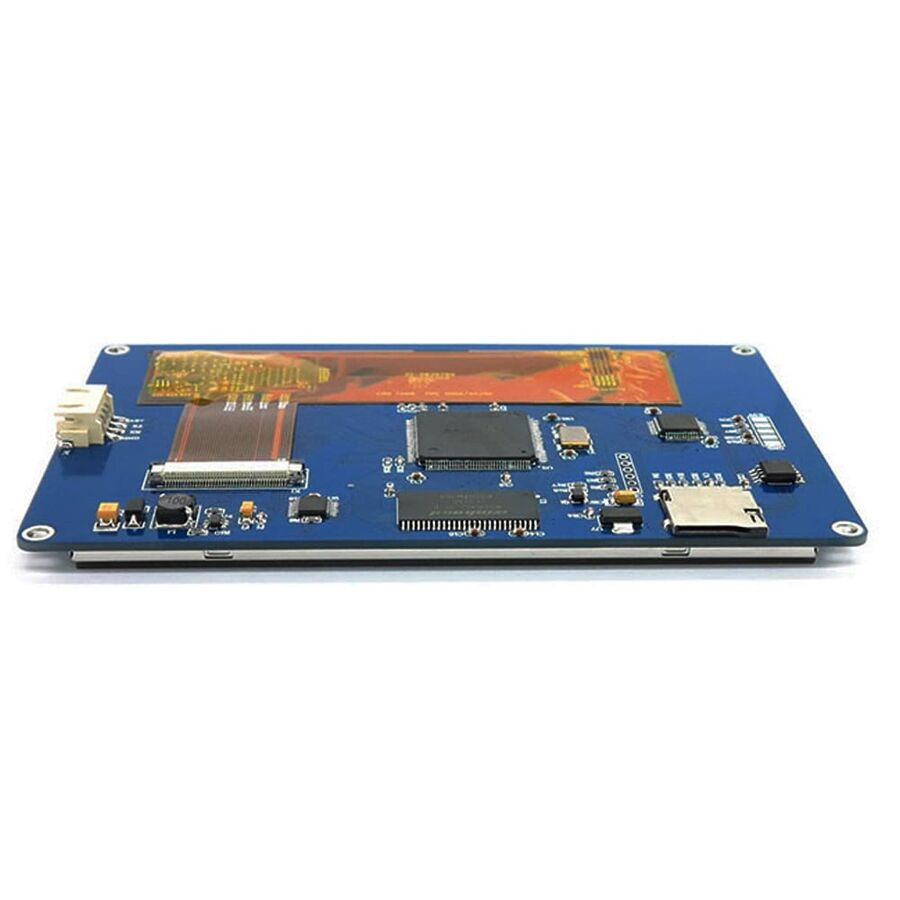

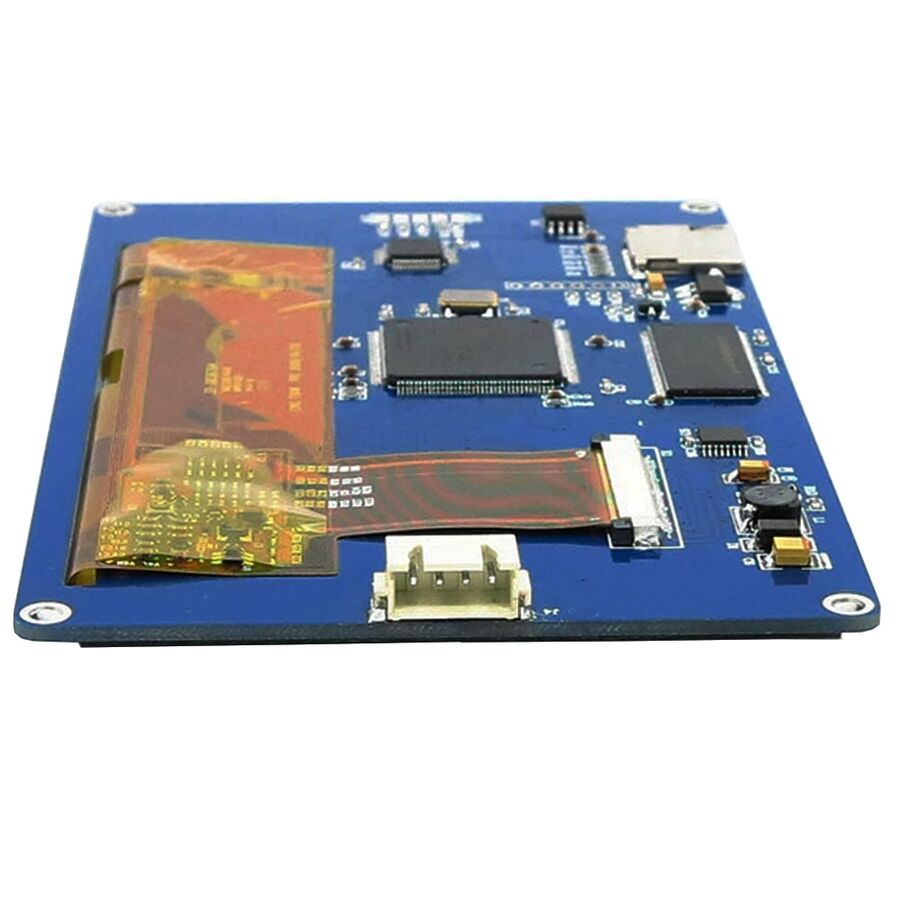

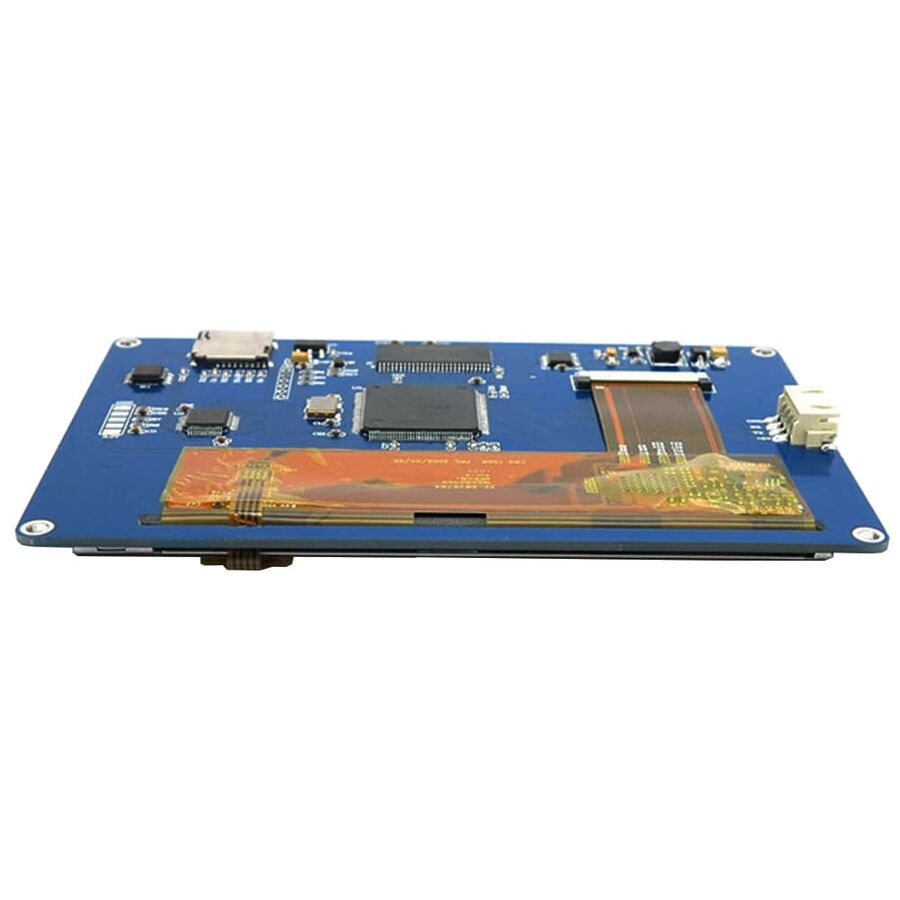

This product consists of a set of TFT boards in the hardware part and - Nextion editor in the software part. The Nextion TFT board uses a single serial port for communication. So you don't have to deal with wiring. We observe that most engineers spend a lot of time in application development but still fail to achieve satisfactory results. The Nextion editor has a lot of useful elements such as buttons, text insertion feature, progress bar, scroll bar, instrumentation panel, and allows for comprehensive interface designs. The drag-and-drop feature reduces the time you will spend on programming by 99%. Thanks to the WYSIWYG editor, it is very easy to design a GUI.

It's easy to adapt Nextion family's HMI products to your existing projects. All you have to do is add a UART.

Nextion HMI Smart 5 Inch Touchscreen TFT LCD Display Features

• 800 x 480 Resolution
• RGB 65K true colors

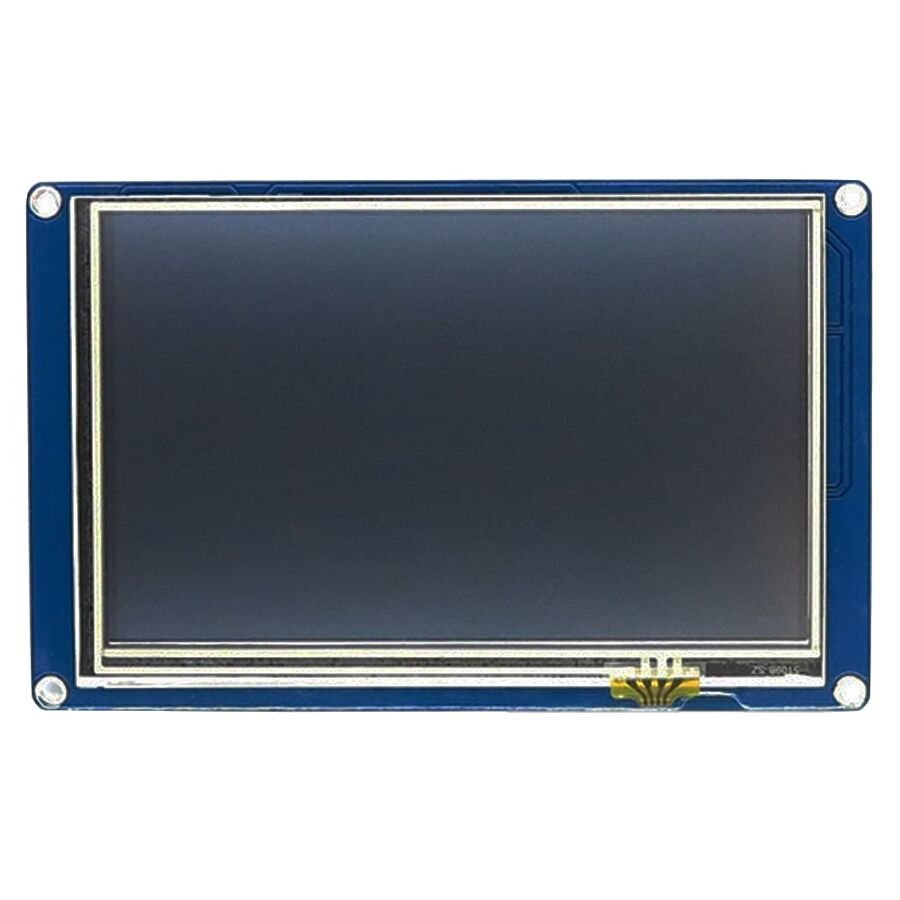

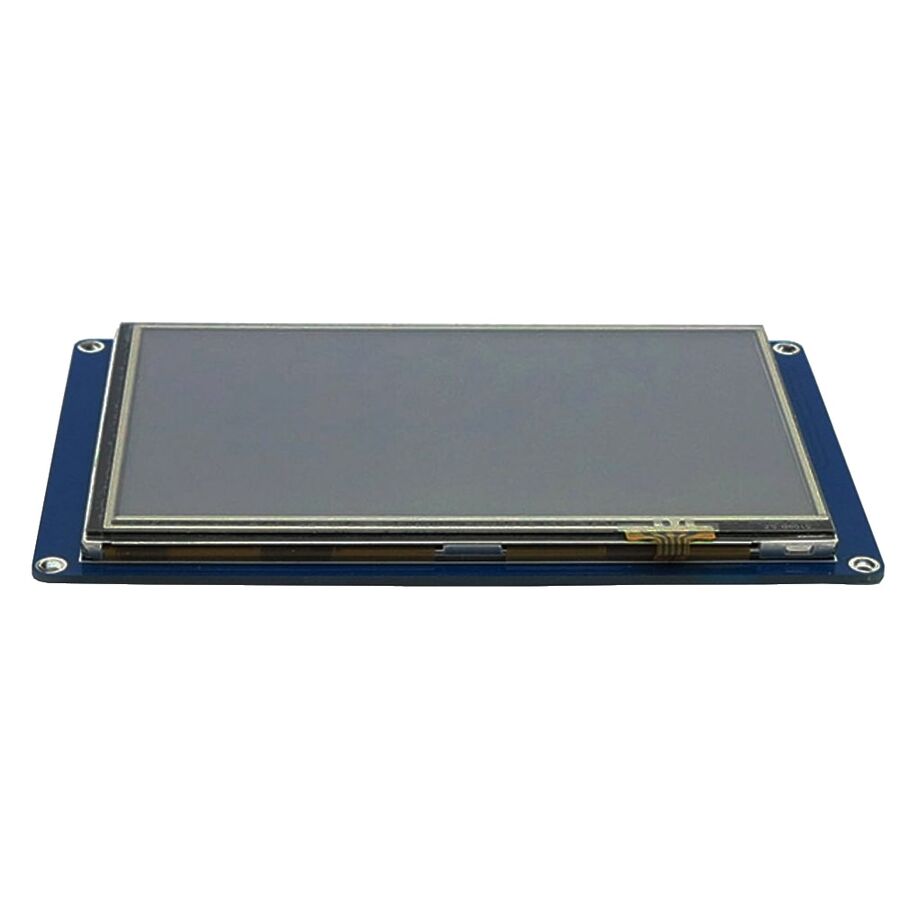

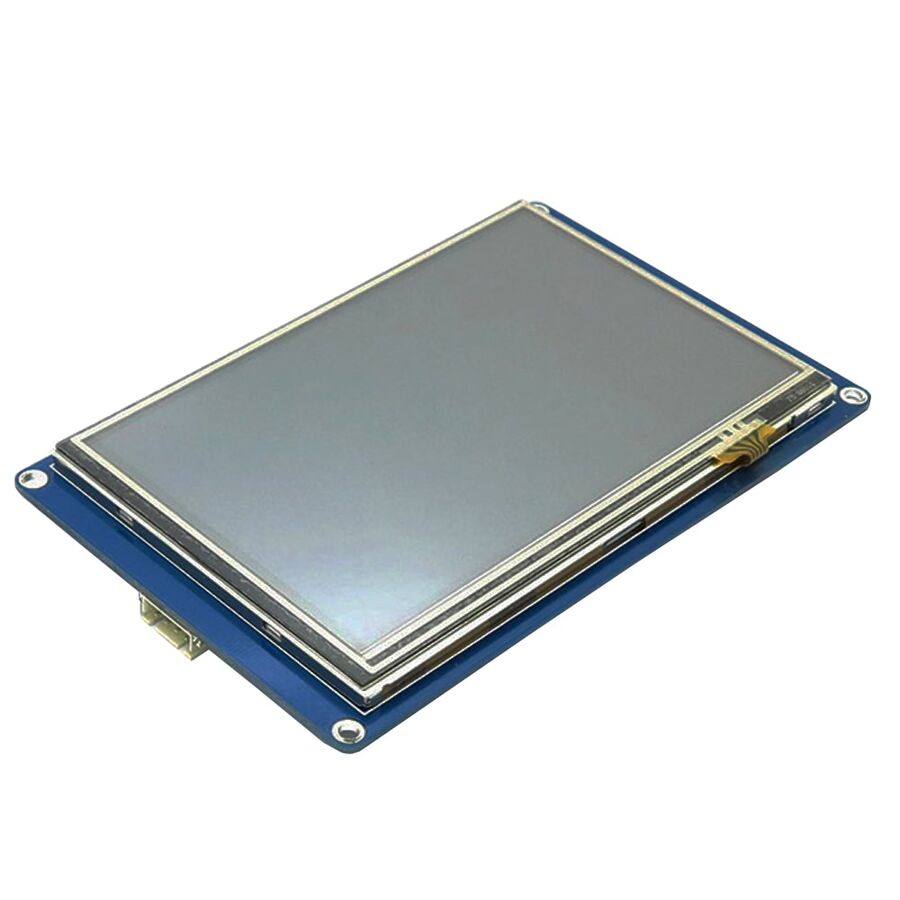

• Integrated 4-wire Resistive Touch Panel TFT Display

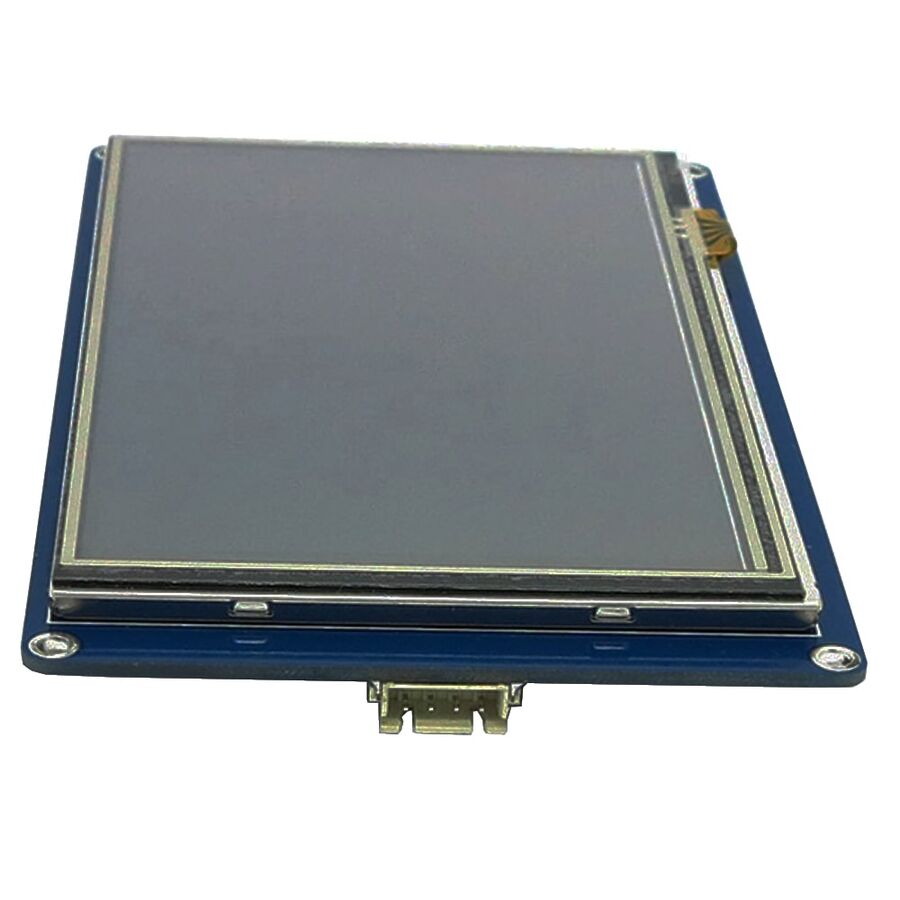

• Easy 4 pin interface to any TTL Serial Host
• 16M Flash Memory for User Application Code and Data
• Internal micro SD card for software upgrade.
• Visual Area: 108mm (L) × 64.8mm (W)
• Adjustable Brightness: 0 ~ 230 nit, the adjustment range is 1%
• 5V410mA power
• Width: 83.7mm
• Length: 134.5mm
• Height: 7.7mm

Easy Screen Design

Compatible Platforms

Connection Format

Coding Interface - Nextion Editor

Documents
