5V-4 Channel Solid State Relay Card (5V 2A) (Compatible with Development Boards)

5V 2A Solid State Relay Card (SSR Relay)

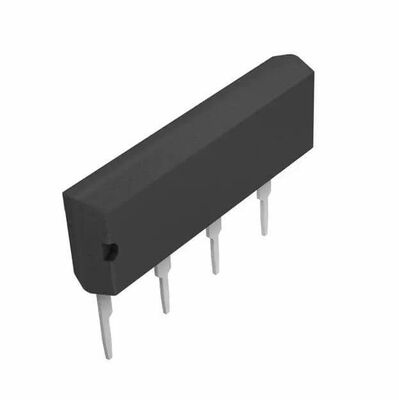

Solid State RelaysProvides Direct Current (DC) and Alternating Current (AC) load control. One of its biggest advantages is that it does not have mechanical contacts like normal relays. It uses Triac instead. It also offers extra security with optics insulation. Therefore, it provides fast driving of loads operating with high power conversion voltage (AC) safely at low currents.

5V-4 Channel Solid State Relay Board (5V 2A) (Compatible with Development Boards) Technical Specifications

• Size: 71 * 62mm * 24mm
• Power supply: 5V DC (160mA)
• Input control signal voltage:
  • (0-0.5V low step SSR OFF)
  • (2.5-20V high pitch SSR is ON)
• SSR Output (each channel):
  • Load voltage range: 75 - 264VAC (50 / 60Hz)
  • Load current: 0.1 to 2 AMP
