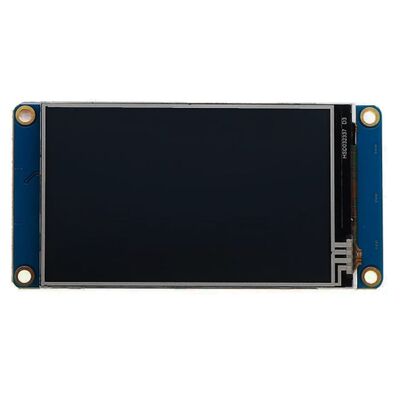

3.2 Inch Nextion HMI Touch TFT Lcd Display - 4MB Internal Memory

3.2 Inch Nextion HMI Touch TFT Lcd Display - 4MB Internal Memory

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. It is the best solution to replace traditional LCD and LED Nixie tubes.

Nextion Smart HMI 3.2 Inch Touchscreen TFT LCD Display

This solution includes hardware part - a set of TFT boards and software part - Nextion editor. The Nextion TFT board uses only one serial port to communicate. Get rid of the cable connection problem. We note that most engineers spend a lot of time in application development but get unpleasant results. In this case, the Nextion editor can use button, text, progress bar, slider, dashboard, etc. to enrich your interface design. There are such bulk components. The drag and drop function saves you less time in programming; this will reduce the development workload by 99%. With the help of this WYSIWYG editor, GUI design is part of the cake.

Nextion family HMI is easy to adapt to existing projects, you just need to provide a UART.

NX2432T024 is a powerful 3.2 inch HMI product of the Nextion family. Features include: 3.2 inches TFT, 480 x 240 resistive touchscreen, 4M Flash, 2KByte RAM, 65k colors.

Nextion Smart HMI 3.2 Inch Touchscreen TFT LCD Display Features

• 480 x 240 Resolution
• RGB 65K is valid for vivid colors
• Integrated 4-wire Resistive Touch Panel TFT Display
• Easy 4 pin interface to any TTL Serial Host
• 4M Flash Memory for User Application Code and Data
• Internal micro SD card for software upgrade
• Visual Area: 69.60mm (L) × 41.76mm (W)
• Adjustable Brightness: 0 ~ 230 nit, the adjustment range is 1%
• 5V85mA power

Documents
