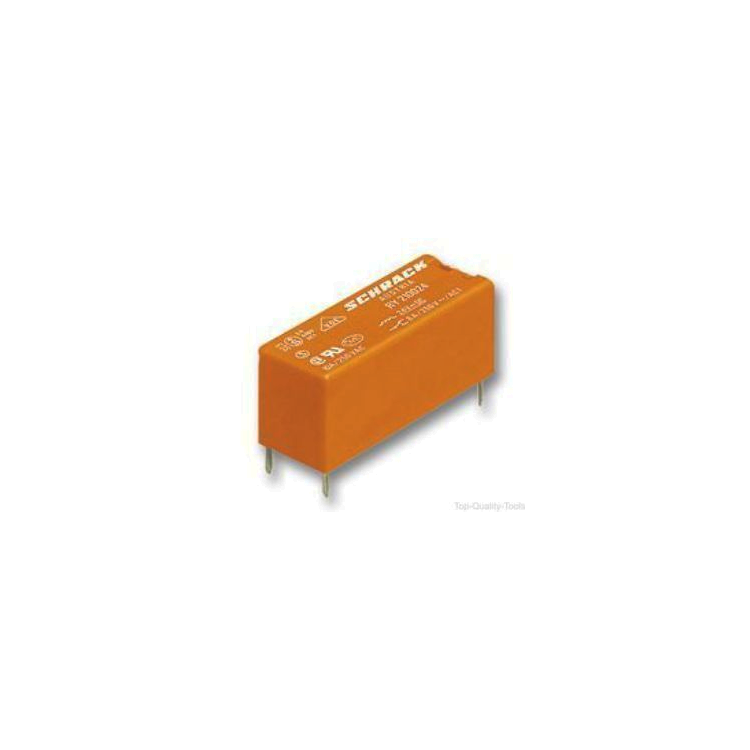

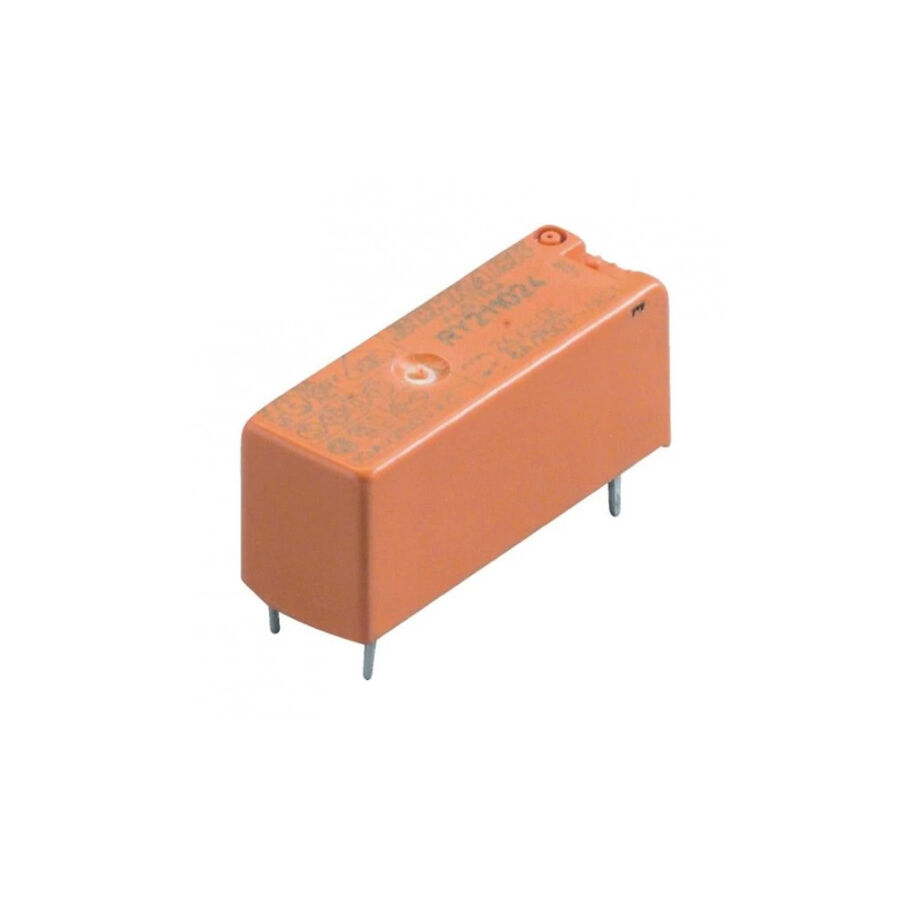

24V 8A Miniature Schrack Relay

24V 8A Miniature Relay

RelayIt is a mechanical switching unit that can be controlled electrically. It consists of two main parts: relay coil and contactors. The relay coil, over which current flows, creates a magnetic field and attracts the contacts. Thus, relay contacts change position.

It is one of the circuit components preferred in telecom applications, gas detector circuits, RF control applications, Infrared control applications, small volume circuits (gum relay) etc.

It is used in the control of load currents between 1A-40A at operating voltages of 5V, 9V, 12V, 24V, 48V, 220V. Single and multiple contact output possibilities are available.

24V 8A Miniature Schrack Relay Technical Specifications

Power Relay Type: Standard

Relay Mounting Type: Printed Circuit Board

Number of Poles: 1

Contact Current: (Max) (A): 8A

Coil Voltage (VDC): 24V

Contact Current Class (A): 5A - 10A

Contact Voltage (Max) (VAC): 400VAC

Coil Power (mW): 223

Width: 9.7mm

Length: 28.4mm

Height: 11.6mm
