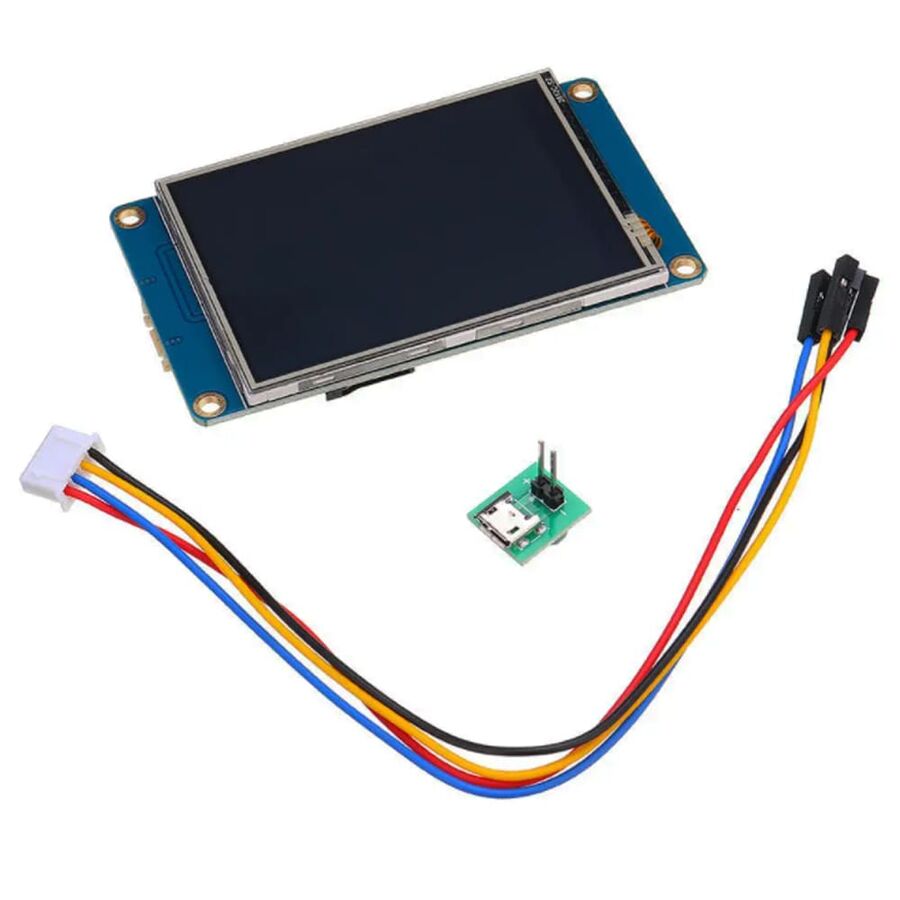

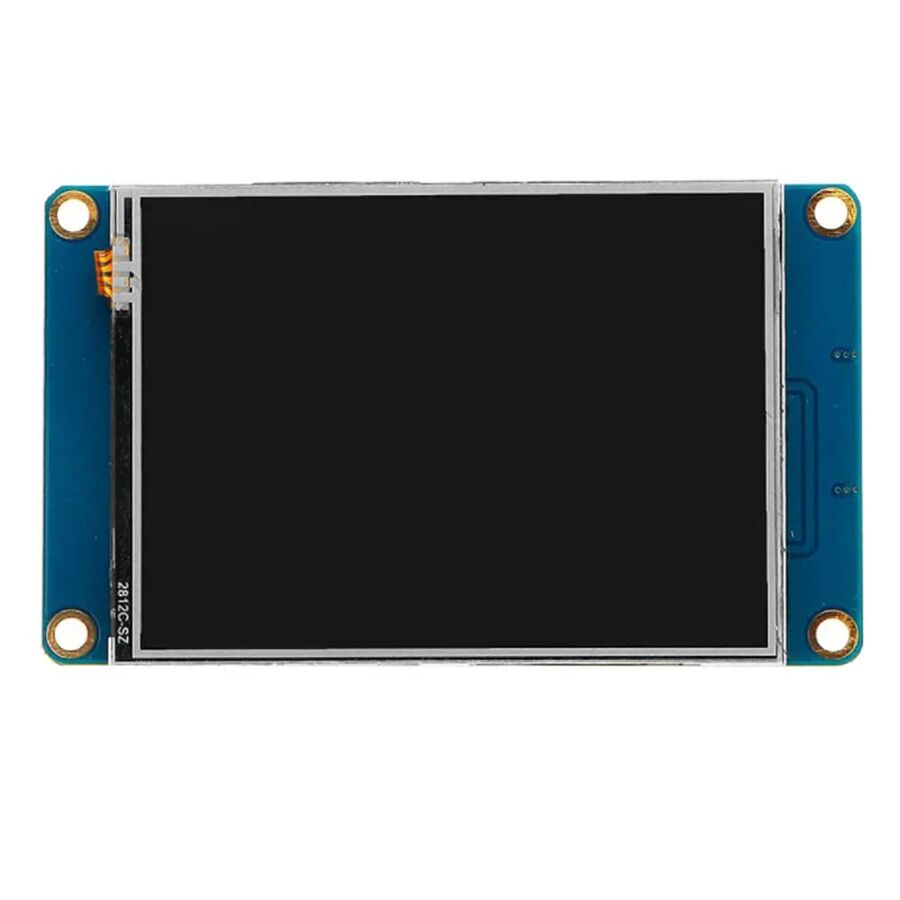

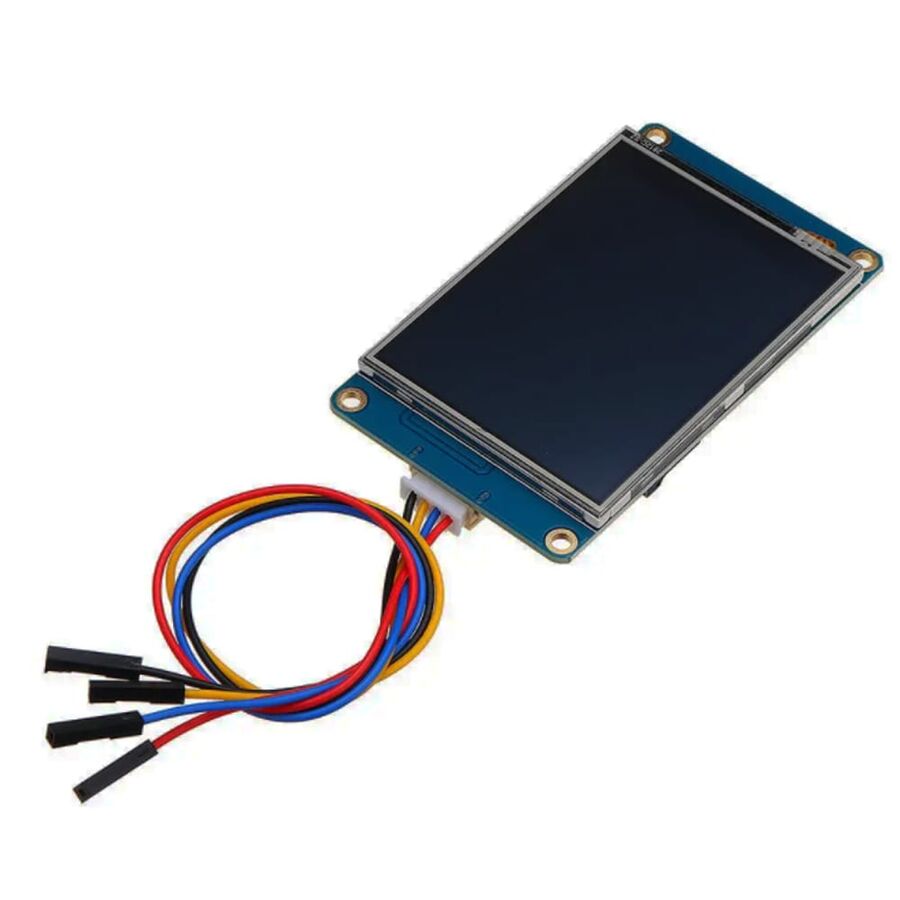

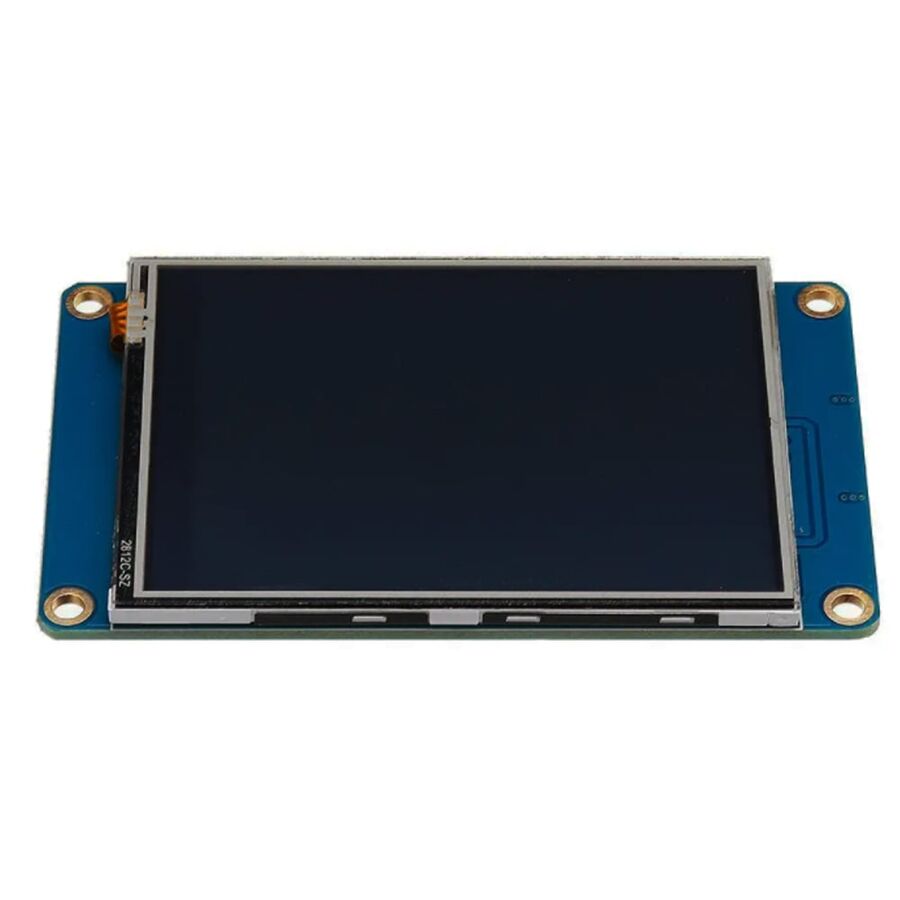

2.8 Inch Nextion HMI Touch TFT Lcd Display - 4MB Internal Memory

2.8 Inch Nextion HMI Touch TFT Lcd Display - 4MB Internal Memory

Nextion is a Seamless Human Machine Interface (HMI) solution that acts as a control and visualization interface between human and process, machine, application or device. It is the best solution designed to replace traditional LCD and LED Nixie tube.

Nextion HMI Smart 2.8 Inch Touchscreen TFT LCD Display

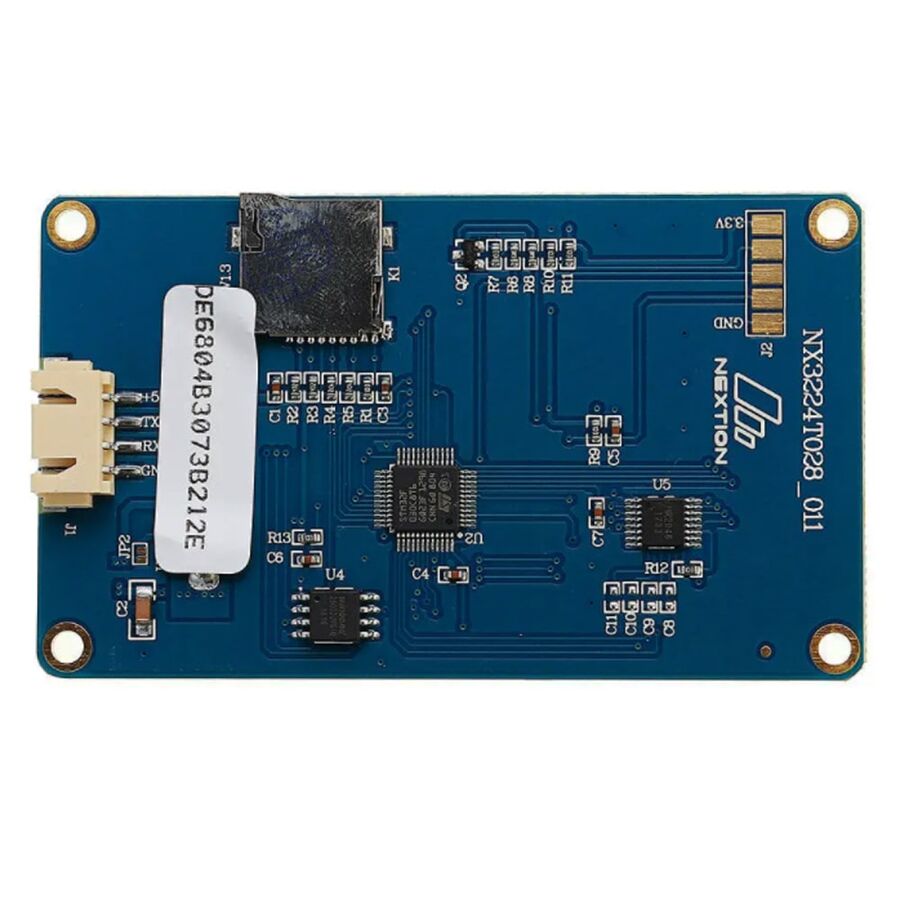

This product consists of a set of TFT boards in the hardware part and - Nextion editor in the software part. The Nextion TFT board uses a single serial port for communication. So you don't have to deal with wiring. We observe that most engineers spend a lot of time in application development but still fail to achieve satisfactory results. The Nextion editor has a lot of useful elements such as buttons, text insertion feature, progress bar, scroll bar, instrumentation panel, and allows for comprehensive interface designs. The drag-and-drop feature reduces the time you will spend on programming by 99%. Thanks to the WYSIWYG editor, it is very easy to design a GUI.

It's easy to adapt Nextion family's HMI products to your existing projects. All you have to do is add a UART.

Nextion HMI Smart 2.8 Inch Touchscreen TFT LCD Screen Features

• 320 x 240 Resolution
• RGB 65K is valid for vivid colors
• Integrated 4-wire Resistive Touch Panel TFT Display

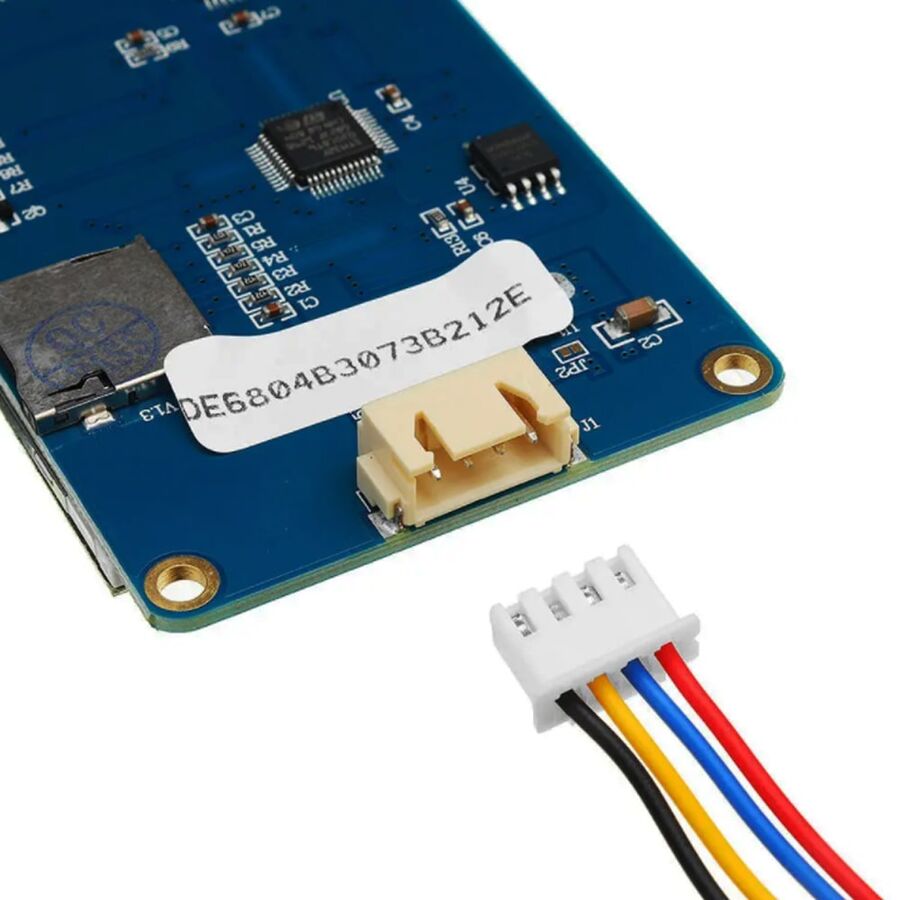

• Easy 4 pin interface to any TTL Serial Host
• 4M Flash Memory for User Application Code and Data
• Internal micro SD card for software upgrade

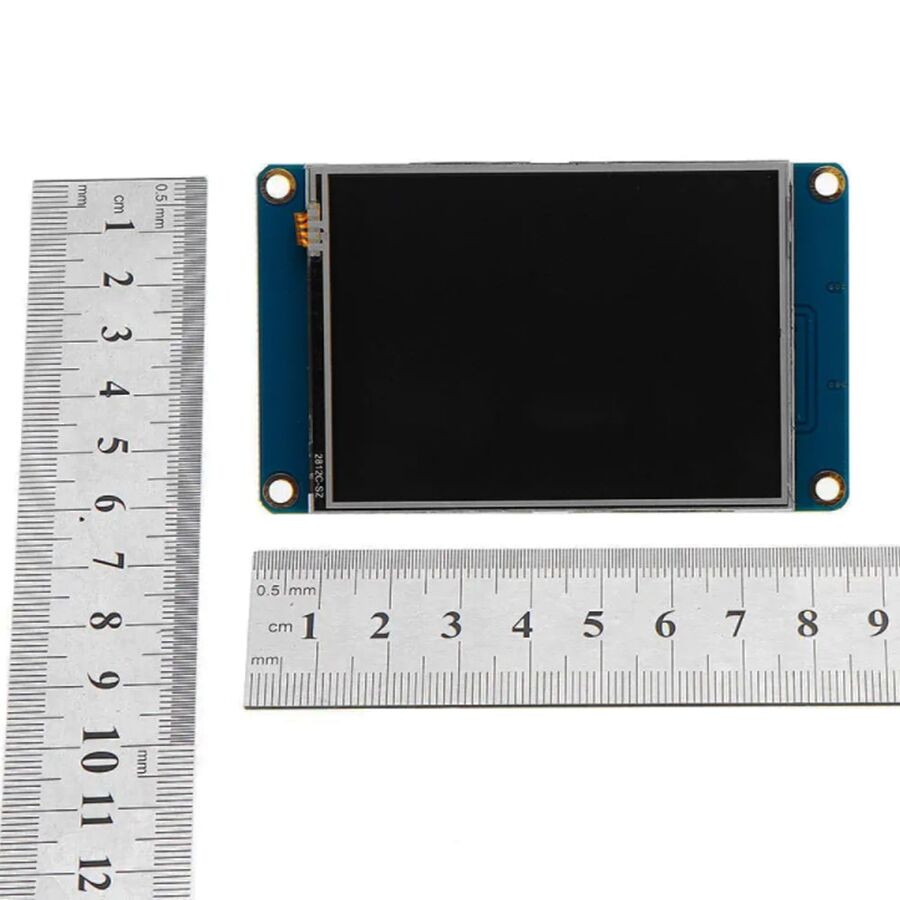

• Visual Area: 57.6mm (L) × 43.2mm (W)
• Adjustable Brightness: 0 ~ 180 nit, the adjustment range is 1%
• 5V65mA power

Easy Screen Design

Compatible Platforms

Connection Format

Coding Interface - Nextion Editor

Documents
