13.56 Mhz RFID Reader

Yorum Yap

Marka/Menşei:ACS

Stok Kodu:14276

1.411,48 TL + VAT

1.693,78 TL

KDV Dahil

Alışveriş Listeme Ekle

Fiyatı Düşünce Haber Ver

1500₺ ve üzeri kargo ücretsiz.

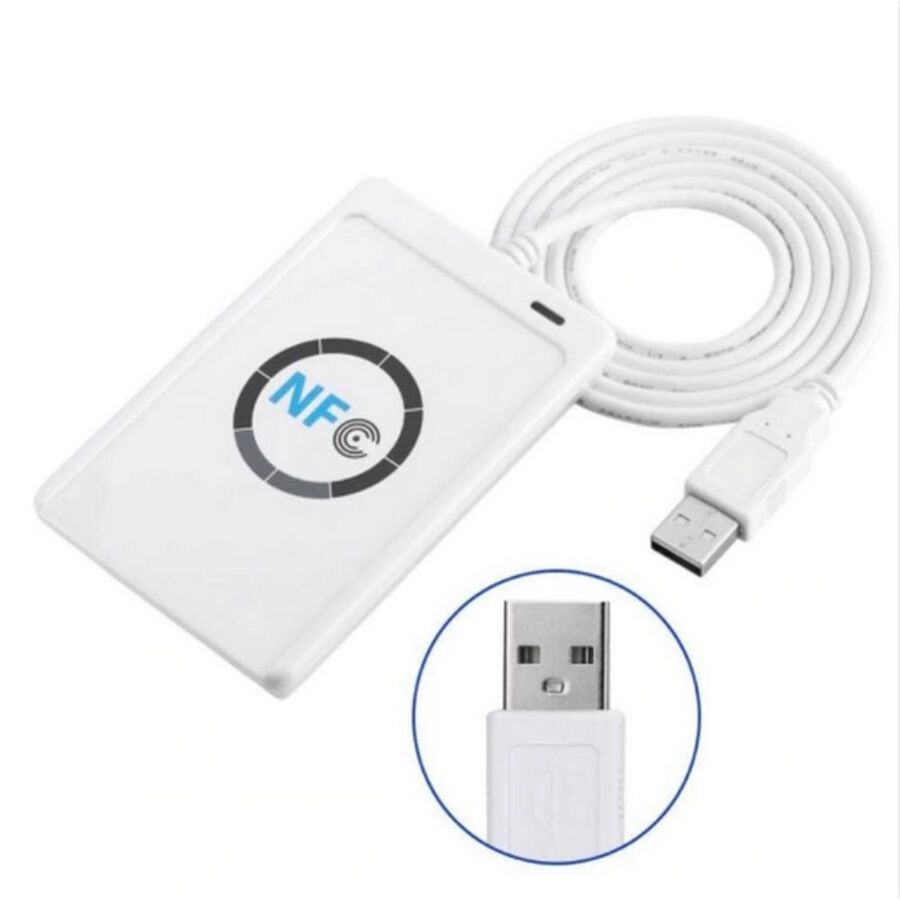

13.56 Mhz RFID Reader

RFID cardYou can use it in your control access projects and secure access projects. Card reader working with 13.56 Mhz can be operated with Usb connection. Mifare Ultralight C supports Mifare Plus SLI, SL3 and ISO 14443 Type A and B, FeliCa, 4 types of NFC (ISO / IEC 18092) tags.

Specifications:

USB 2.0 full speed interface

CCID compliant

PC / SC compatible

Read / write speed up to 424 kbps

Internal antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

Supports ISO 14443 type A and B, FeliCa and 4 types of NFC (ISO / IEC 18092) tags.

Supports for Mifare Ultralight C (with so-called APDUs) and Mifare Plus SL1 (with 4 byte UID, pseudo APDUS) and SL3.

Supports NFC 3 mode: reader, card emulation and peer-to-peer modes

Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

USB PnP

13.56 Mhz RFID Reader Technical Specifications

Manufacturer	China
Product Category	13.56 MHz RFID Reader
Size	98mm (L) x 65mm (W) x 12.8mm (H)
Interface	USB full speed
Working distance	<= 50mm (etiket tipine bağlıdır)
Supply voltage	5 V DC
Supply current	200mA (working); 50mA (standby); 100mA (normal)
Operating temperature	0-50 ° C
Working frequency	13.56 MHz
Smart card interface support	4 types of NFC (ISO / IEC18092) tags for ISO14443 type A & B, for Mifare, for FeliCa
Operating system support	Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, WinServer 2008, Win XP XP, Win Vista x64, Win 7x64, Win Server 2003x64, Win Server 2008x64, WinSserver 2008 R2 R2, Windows CE 5.0, Linux, Mac (please find suitable software to support)

Scope of application:

1.Network access control

2. Bank and paymen

3. Public transport terminal

4. Automatic fare collection

5. Physical access control

6. Customer loyalt

7.Time and attention

8.Contactless public phone

9. Vending Machine

Package Included:

1 x NFC smart reader and writer
