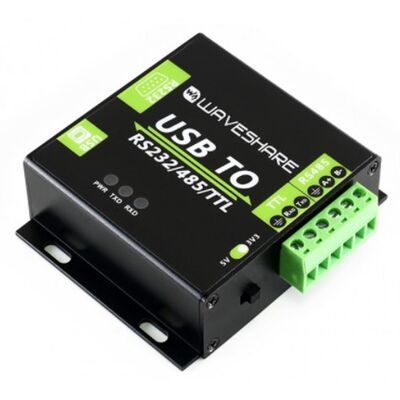

USB to RS232 / RS485 / TTL Industrial Isolated Converter
USB-TTL Industrial Isolated Converter
USB-TTL Industrial Isolated Converter,It is an industrial USB to RS232 / 485 / TTL isolated converter with original FT232RL inside. It has embedded protection circuits such as power isolation, ADI magnetic isolation and TVS diode. USB TO RS232 / 485 / TTL comes with an aluminum alloy housing, making it sturdy and durable to work.
USB RS232 / 485 / TTL is very easy to use, fully automatic transceiver without delay, making it an ideal choice for industrial control equipment and / or applications with high communication requirements due to its fast communication, stability, reliability and security.
Features:
USB - RS232, USB - RS485, USB - TTL (UART)
Built-in monolithic power supply isolation provides stable isolated voltage, no need extra power supply for isolated terminal.
Built-in monolithic magnetic isolation provides signal isolation, high reliability, strong anti-interference, low power consumption.
Built-in TVS (Transient Voltage Suppressor), effectively suppress overvoltage and transient surge voltage in the circuit, it is lightning proof and anti-electrostatic.
Built-in self-recovery fuse and protection diodes provide current / voltage stable outputs, provide overcurrent / overvoltage proof, increase shock resistance.
The delay-free fully automatic transceiver circuit enables the USB port to communicate with different interfaces quickly and stably without interfering with each other.
Built-in TTL serial 3.3V / 5V voltage converter, you can configure the TTL level by switch.
It features sandblasting and anodic oxidation, CNC machining, solid and durable aluminum alloy housing.
It has 3 LEDs to indicate power and transceiver status.
High quality USB-B and RS232 connectors work seamlessly as plug / pull.
USB - RS232 / RS485 / TTL Industrial Isolated Converter Technical Specifications
| Manufacturer | WaveShare |
| Product Category | Usb Converter Modules |
| Baudrate | 300 - 921600bps |
| Host Port | USB |
| USB | Working voltage: 5V Connector: USB-B Protection: 200mA self-recovering fuse, isolated output Transmission distance: ~ 5m |
| RS485 | Connector: DR9 male Protection: TVS diode, overvoltage protection, ESD protection Transmission distance: ~ 15m Transmission mode: point to point |
| TTL (UART) | Working voltage: 3.3V / 5V Connector: screw terminal Pins: TXD, RXD, GND Protection: clamp protection diode, over voltage / negative voltage proof, shock resistance Transmission mode: point to point |
| LED Indicators | PWR: red power indicator, lights when there is USB connection and voltage is detected. TXD: green TX indicator lights up when the USB port is sending data. RXD: the blue RX indicator lights up when the device ports are sending data back. |
| Working Environment | Temperature: -15 ℃ ~ 70 ℃ Humidity: 5% RH ~ 95% RH |
| OS | Windows 10 / 8.1 / 8/7 / XP |
Documents
- WikiCheck out the page.
Useful Links
- Usb Converter ModulesYou can review our products.
- Sensors and ModulesYou can review our products.
Product Filters | ||
|---|---|---|
| Barcode | : | WS15817 |
| Supplier Product Code | : | WS15817 |
