NEMA 11 200 Step Bipolar Step Motor 0.67A - Pololu 1206

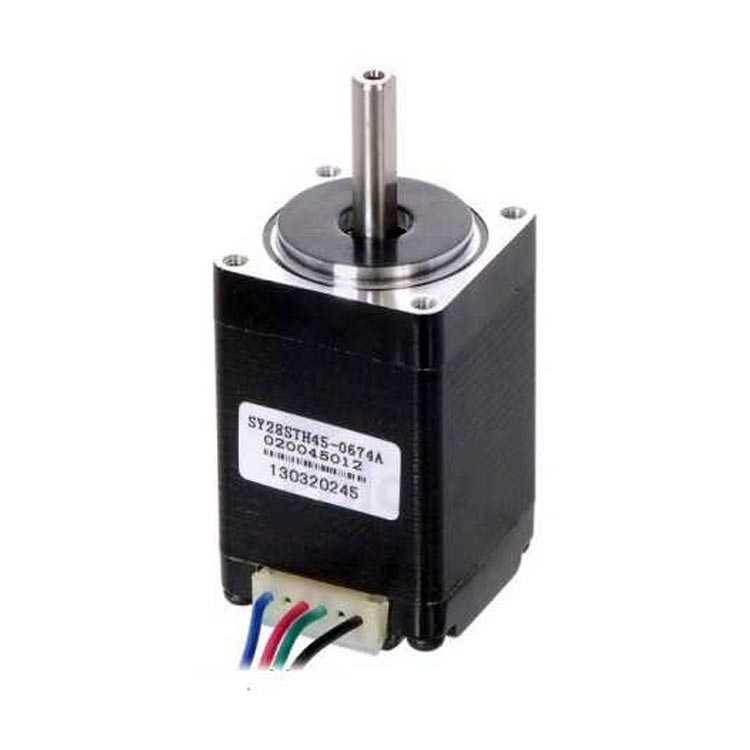

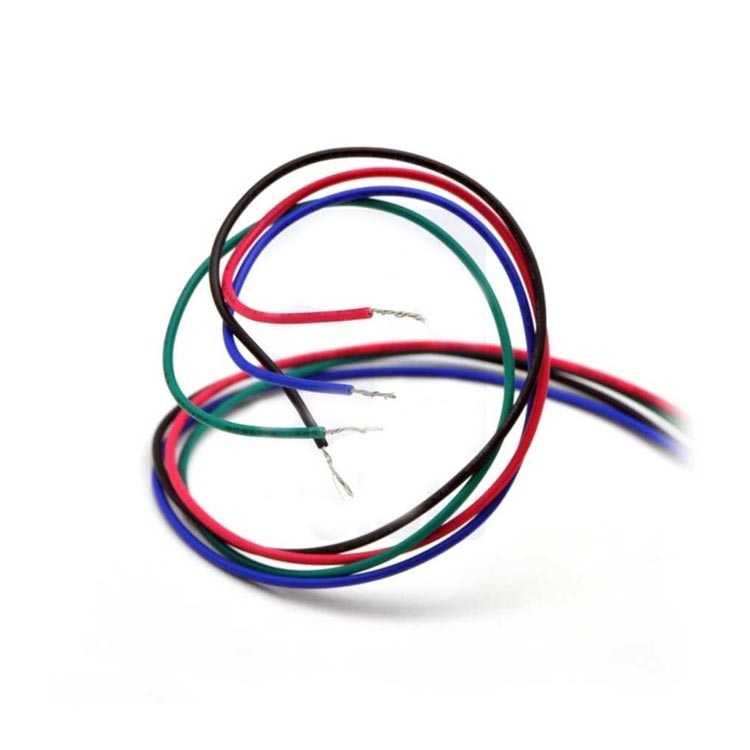

This Nema 11 sized stepper motor takes 200 steps in a full revolution with 1.8 ° stepping. The forcing torque of this step motor, which draws 670mA current at 4.5 Volts in each phase, is 950gr.cm. While the colored cables on it are connected to a black and green coil, the red and blue colored cables are connected to the other coils. If desired, it can be controlled with a suitable H-Bridge circuit. However, it is recommended to be used with a suitable bipolar stepper motor driver.

NEMA 11 200 Step Bipolar Step Motor Features

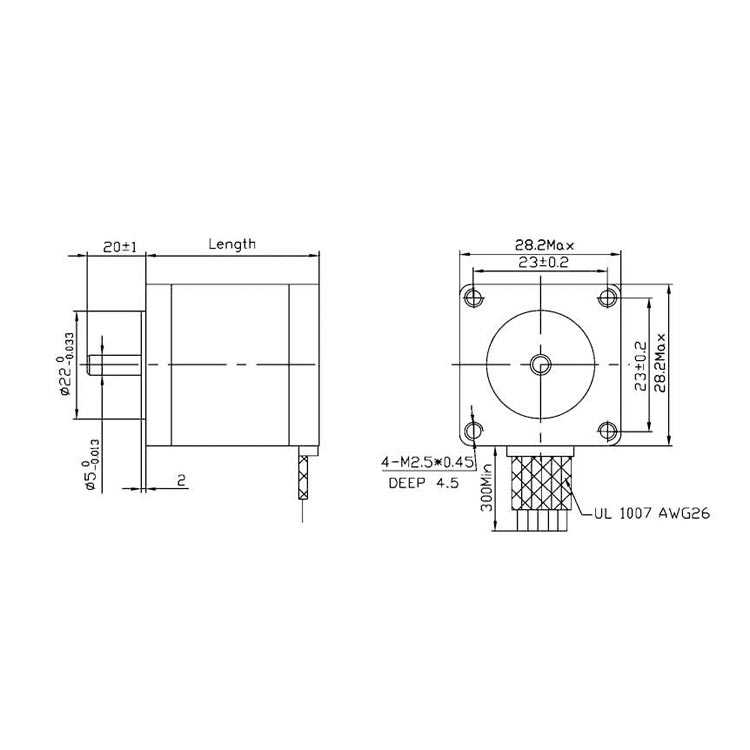

  • Size: 28mm square × 45mm (Excluding Shaft) (NEMA 11)
  • Weight: 140 g
  • Shaft diameter: 5 mm "D"
  • Number of steps at a full revolution: 200
  • Current limit: 670 mA per coil
  • Voltage limit: 4.5 V
  • Resistance: 6.8 Ω per coil
  • Strain torque: 950 g-cm (13 oz-in)
  • Inductance: 4.9 mH per coil
  • Cable length: 30 cm
  • Output shaft is reinforced with 2 bearings.
