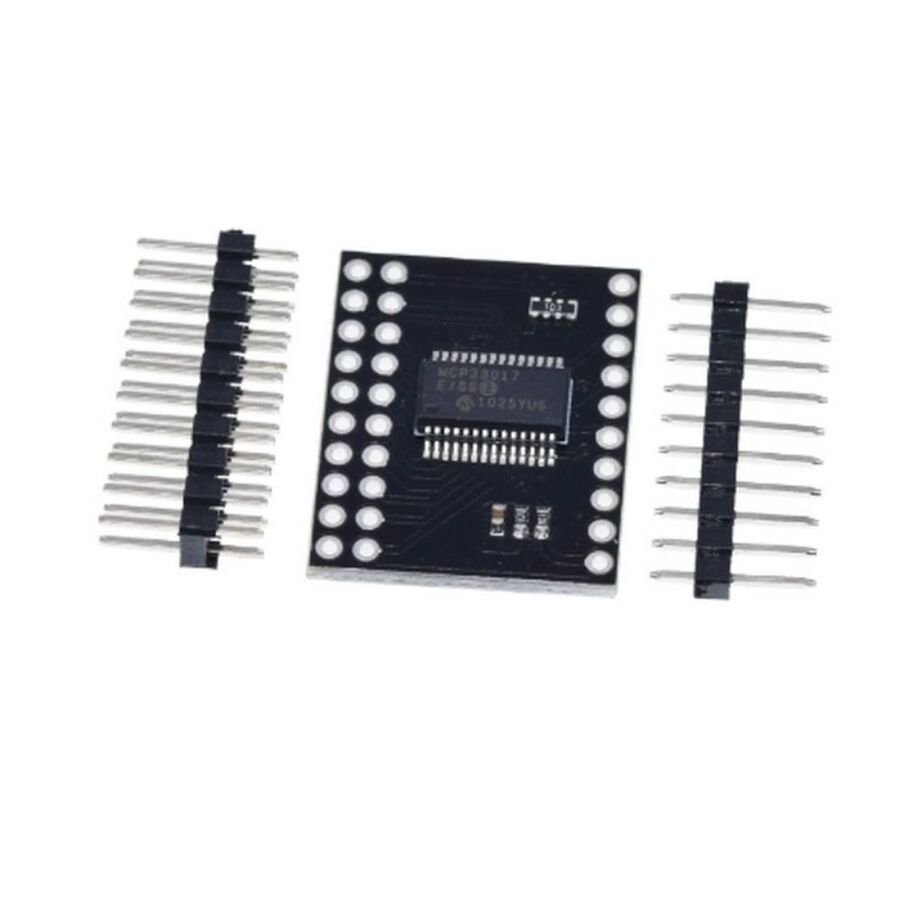

MCP23017 Serial Interface Module I2C SPI Bi-Directional 16-Bit I / O Extender

MCP23017 Serial Interface Module I2C SPI Bi-Directional 16-Bit I / O Extender 10Mhz

You can use both I2C and SPI protocols with the MCP23017 Serial Interface Module. This module provides the 16 Bit IO pin to the user. MCP23017, which you can operate with SPI up to 10 Mhz and protocol speeds of 100, 400 1700 Khz, has 3 Hardware Addressing Pins and allows connection up to 8 devices.

MCP23017 Serial Interface Module I2C SPI Bi-Directional 16-Bit I / O Extender 10Mhz Specifications

• Low idle current: 1uA
• External Reset Input
• Adjustable Interrupt Output Pins
• Working Voltage: 1.8- 5.5V
• Dimensions: 26.5mm x 21mm
