Maixduino AI Development Kit K210 RISC-V AI + LOT ESP32

Maixduino AI Development Kit

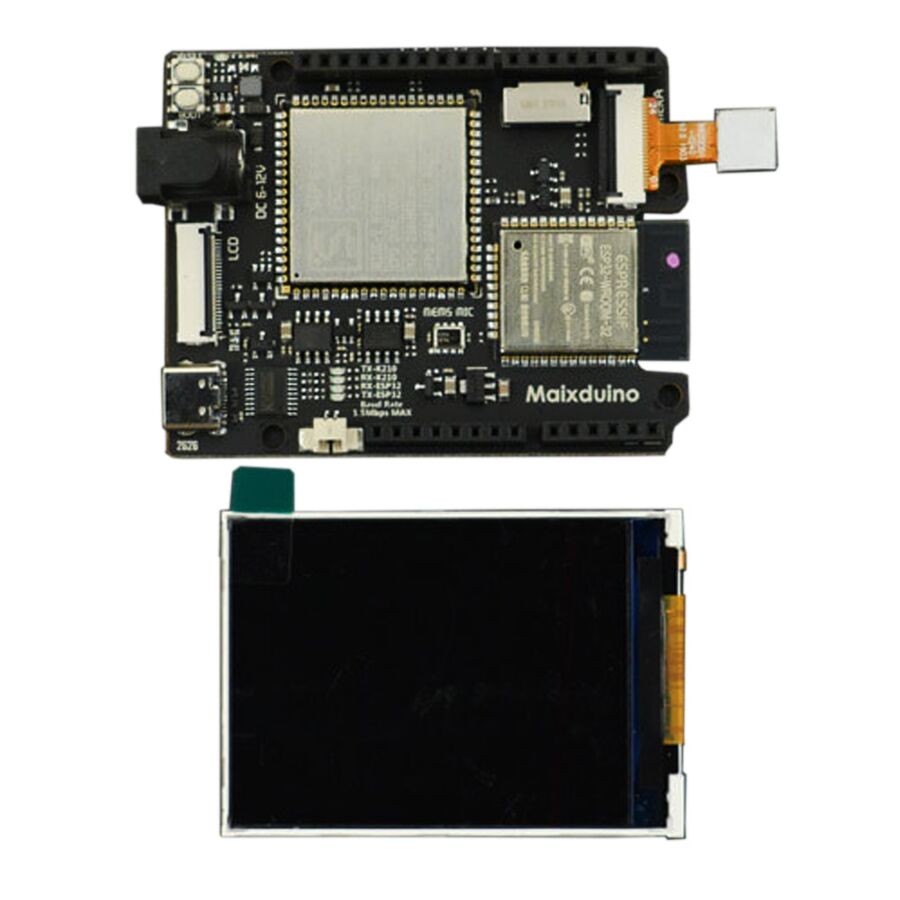

Maixduino AI development board based on K210 RISC-V AI processor,Comes with MI AI module and ESP32 module for WiFi and Bluetooth connection in Arduino UNO form factor.

The K210 comes with a dual-core processor chip with independent FPU, 64-bit CPU bit width, SRAM on 8MB chip, 400 adjustable rated frequency and dual precision FPU supporting multiplication, division and square root operations. Also, the Maixduino AI Development Board is equipped with neural network hardware accelerator KPU, audio processing unit (APU), programmable IO array (FPIOA / IOMUX) and Fast Fourier Transform Accelerator. In AI processing, the K210 can perform operations such as convolution, batch normalization, activation, and pooling. At the same time, audio direction scanning and pre-processing of audio data output can be performed.

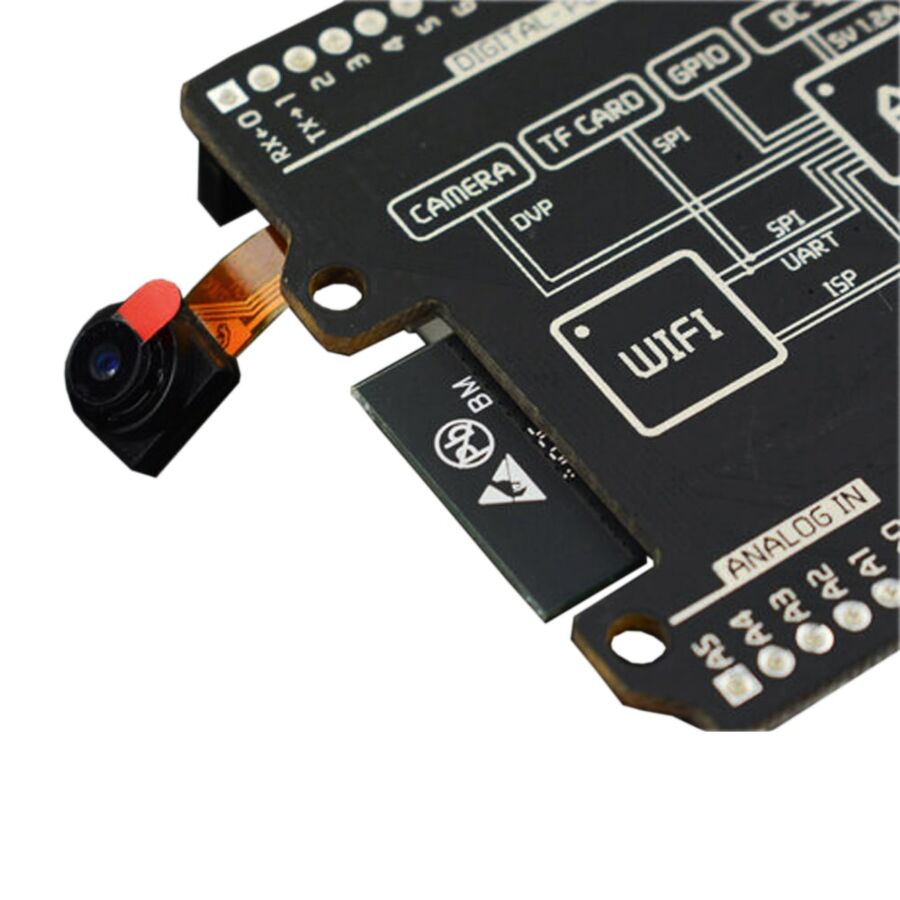

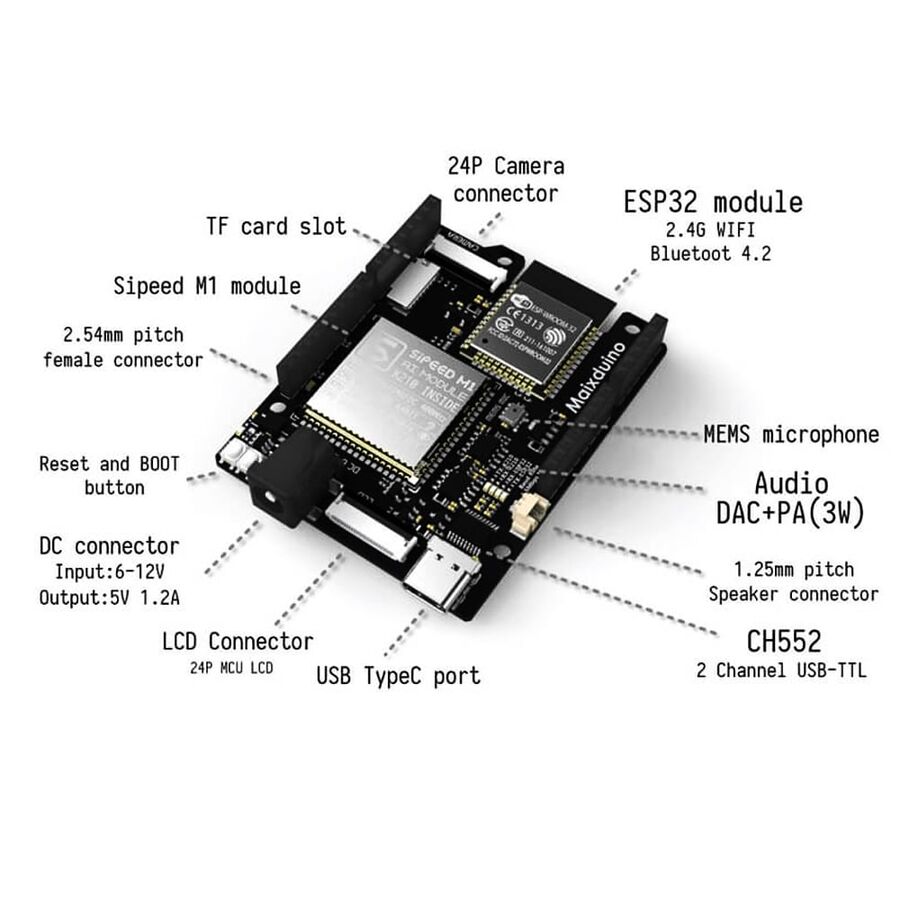

The built-in wireless module of the product is ESP32-WROOM-32 with dual core ESP32 Xtensa LX6 processor, 2.4GHz 802.11.b / g / n WiFi 4 and Bluetooth 4.2 LE connectivity. It also has DVP camera connector to support both K210 and ESP32, LCD display connector, built-in MEMS microphone, TM8211 I2S audio DAC, 3W power amplifier, USB 2.0 Device type-C port for power and programming via dual channel CH522 chip, Arduino UNO compatible headers with digital I / Os / PWM, I2C, UART, 6x analog inputs and power signals.

Application:

• Smart home (Robotic vacuum cleaner and Smart speaker)

• Medical device

• Industry 4.0

• Agriculture and education

Note:

• The shape and pins are compatible with Arduino UNO R3, but the voltage level is not compatible, this requires great care, otherwise the board may be damaged. Maixduino supports 3.3V and 1.8V levels, and the pins are divided into several BANK, each BANK can be set to 1.8V or 3.3V voltage by software, but these pins 5V are not tolerated. Therefore, when using the Arduino's peripheral device, be careful not to short circuit 5V to pin or RST (1.8V) pin.

Maixduino AI Development Kit Specifications

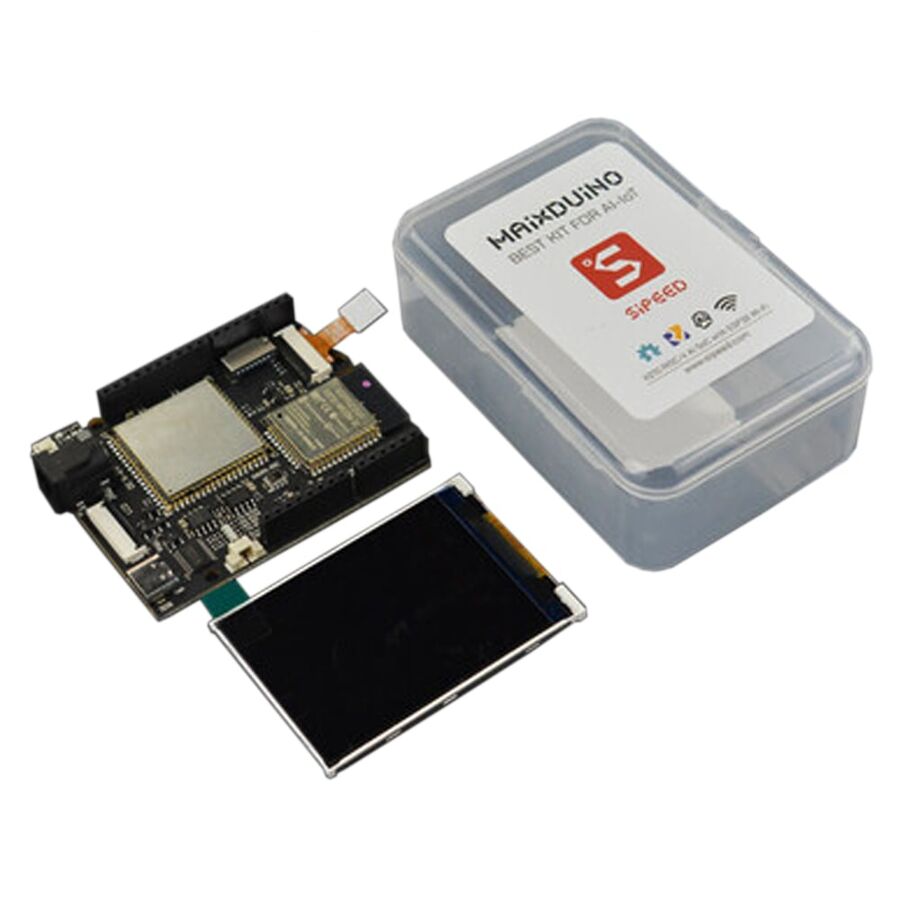

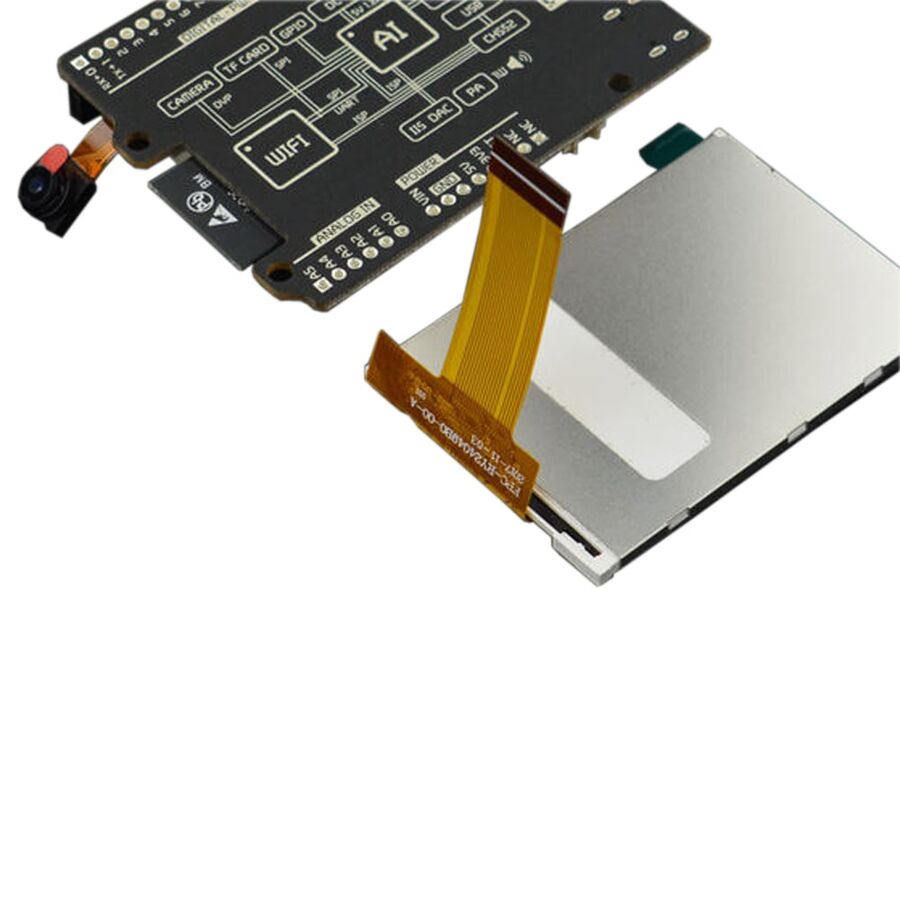

Package Included:

• 1 x Maixduino controller

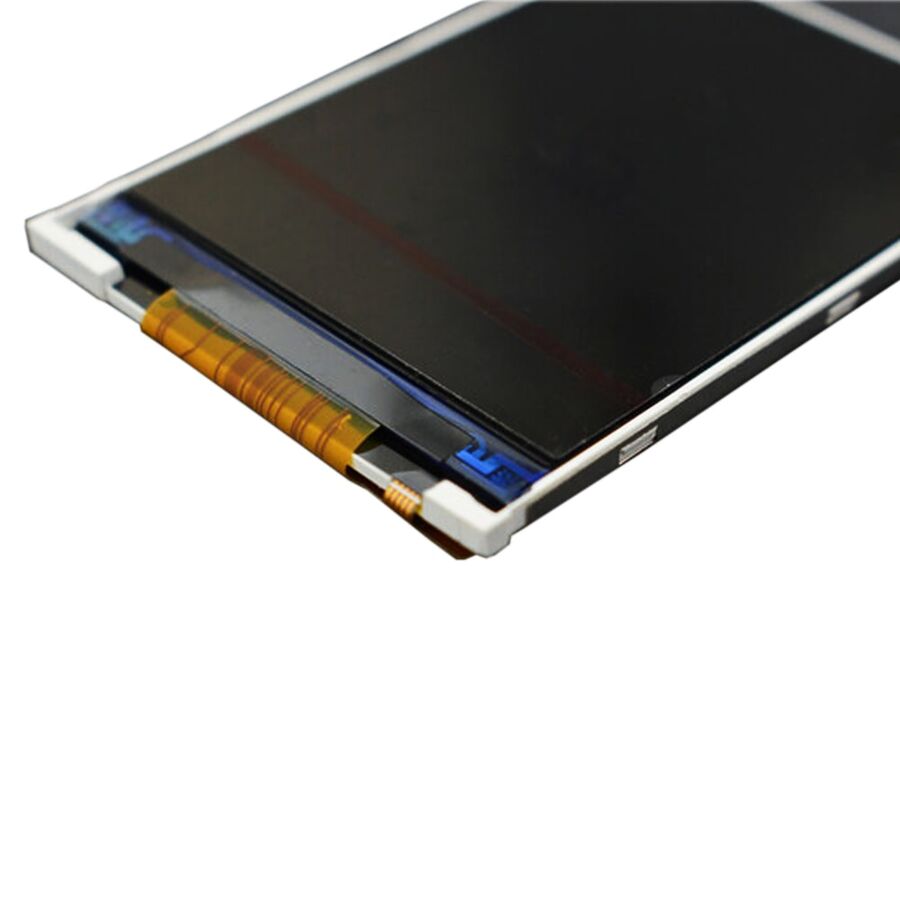

• 1 x 2.4 inch LCD screen

• 1 x OV2640 camera

Documents

• Maixduino DocumentationCheck the page for.
• Setting Up the Arduino EnvironmentCheck the page for.
• Other SDKCheck the page for.
• Product InformationDownload the file.
