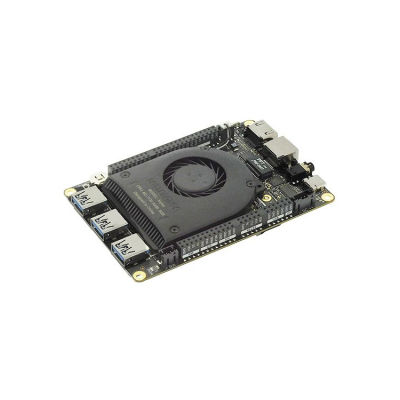

LattePanda Alpha 864s - Small Ultimate Windows / Linux Device

LattePanda Alpha 864s - Small - Tiny Ultimate Windows / Linux Device

The Streaming Cable enables your Windows enabled LattePanda device to work like USB on a Mac or Linux system. Simply plug it into your Apple / Linux device! It also eliminates the use of dual mice and HDMI to connect different systems for seamless interaction of two systems.

WARNING:

This product does not ship with Windows 10 operating system installed.

Note:

RTC Battery is NOT included.

Please Read the Note.

• Using adapters with different values than the original LattePanda adapters will damage the motherboard. Products whose motherboard is damaged in this way are not covered by the warranty.

LattePanda Alpha 864s Technical Specifications

CPU ： Intel 8th m3-8100y

Core ： 1.1-3.4GHz Dual Core ， Four Thread

Benchmark (PassMark): Up to 4128, double processing power compared to same price range products on the market

Graphics ： Intel HD Graphics 615, 300-900MHz

RAM ： 8G LPDDR3

Memory ： 64GB eMMC V5.0l

External memory

• 1x M.2 M Key, supports PCIe 4x, NVMe SSD and SATA SSD

• 1x M.2 E Key, supports PCIe 2x USB USB2.0, UART, PCM

Connection:

• WIFI 802.11 AC, 2.4G and 5G

• Dual Band Bluetooth 4.2

• Gigabyte Ethernet

USB Ports ：

• 3x USB 3.0 Type A

• 1x USB Type C, PD, DP, USB 3.0 supported

View:

• HDMI Output

• Type C DP Support

• Expandable eDP touch screens

Co-processor ： Arduino Leonardo

GPIO and Other Features I 2x50p GPIO including I2C, I2S, USB, RS232, UART, RTC ， Power Management, Expandable power button

Operating System Support ：

• Windows 10 Pro

• Linux Ubuntu

• Size: 115mm * 78mm * 14mm

Documents

• LattePandaYou can review the official site.
